Hood Latch: Removal

WARNING: This page is about a different car, the 2003 Mazda Tribute. However, it is still accessible from the selected car via links, so may be relevant.

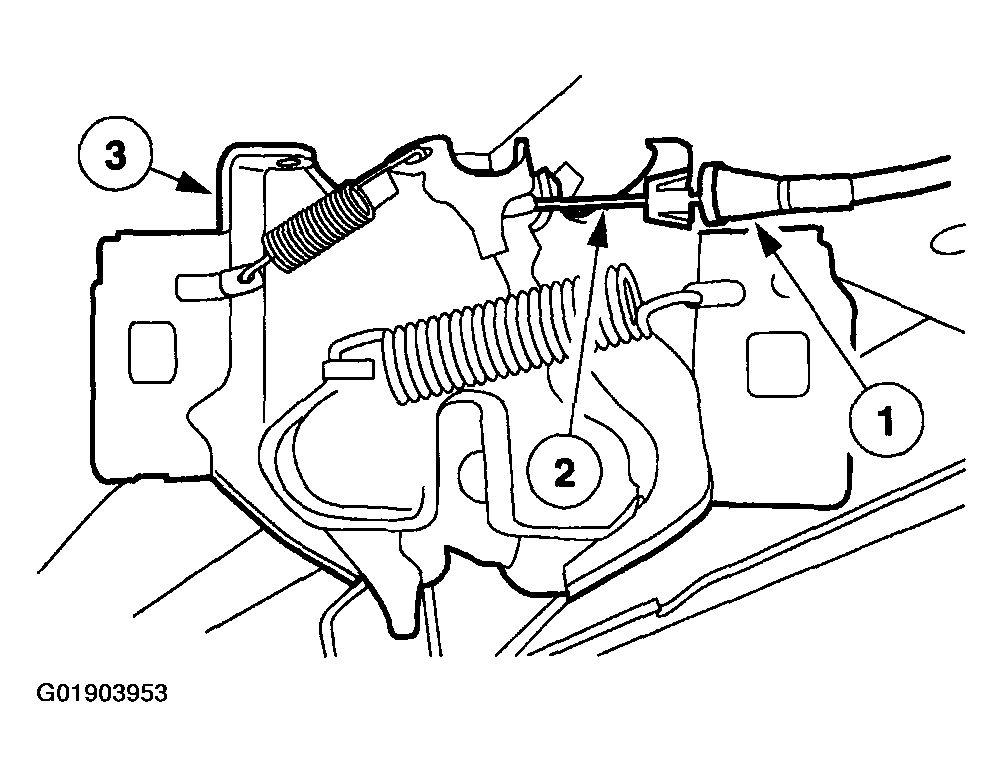

Fig 1: Identifying Hood Latch

Courtesy of MAZDA MOTORS CORP.

Remove the hood latch nut.
NOTE:
- Mark the hood latch position prior to removal of the bolts.
Fig 2: Removing Hood Latch Bolts
Courtesy of MAZDA MOTORS CORP.
Remove the hood latch bolts.

Fig 3: Removing Hood Latch
Courtesy of MAZDA MOTORS CORP.
Remove the hood latch.
1. Release the cable conduit.
2. Disconnect the cable.
3. Remove the hood latch.
