Computers and Control Systems

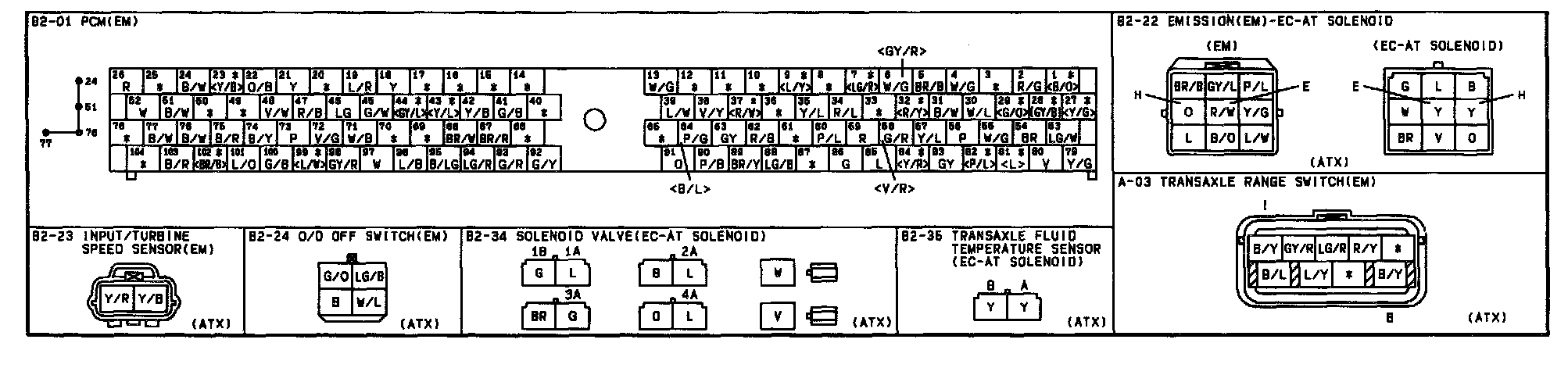

B-2a - EC-AT Control System (FS)/Engine Control System Connectors (FS):

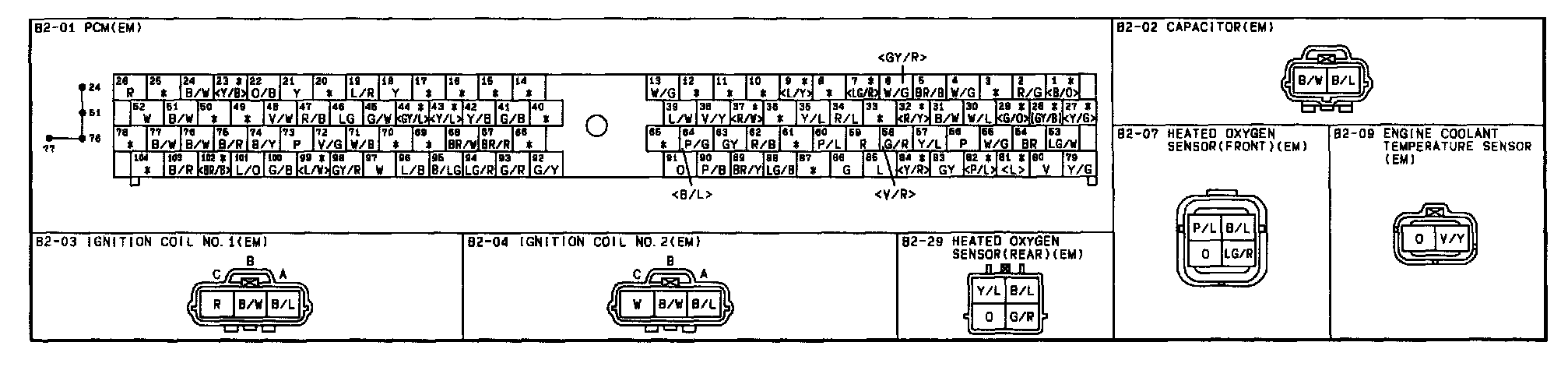

B-2b - EC-AT Control System (FS)/Engine Control System Connectors (FS):

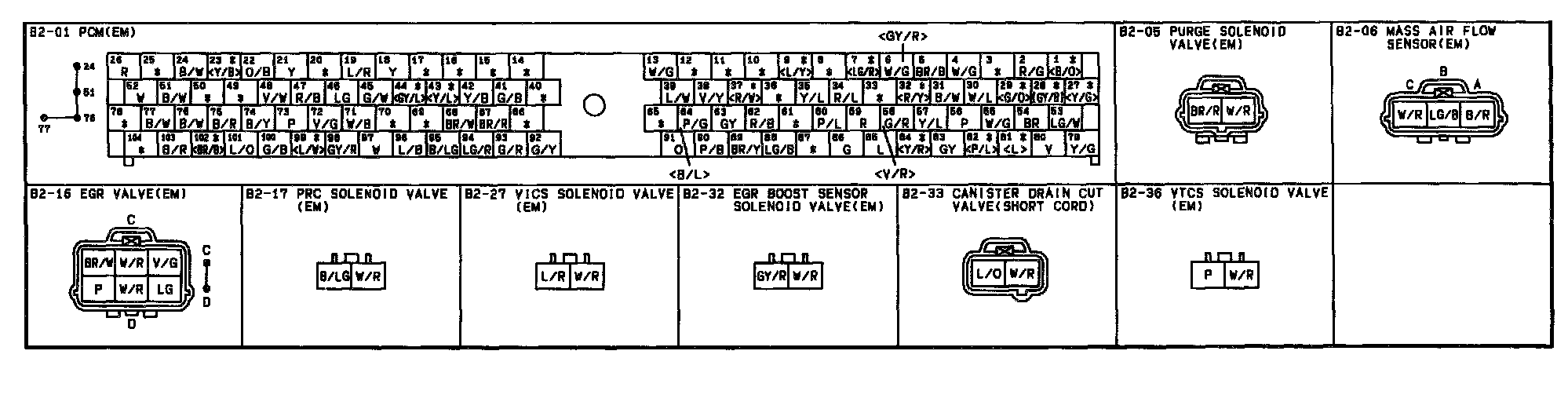

B-2c - EC-AT Control System (FS)/Engine Control System Connectors (FS):

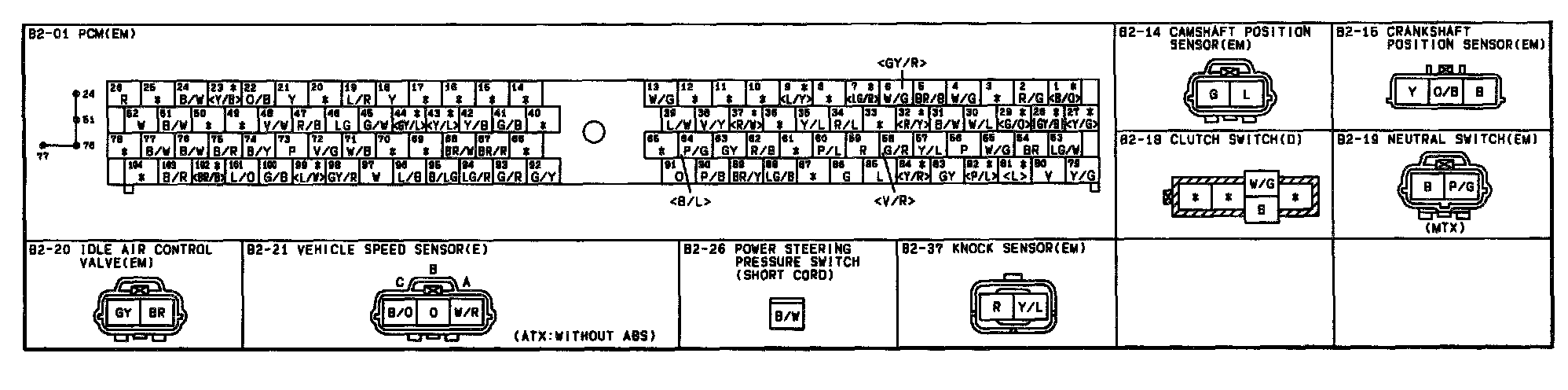

B-2d - EC-AT Control System (FS)/Engine Control System Connectors (FS):

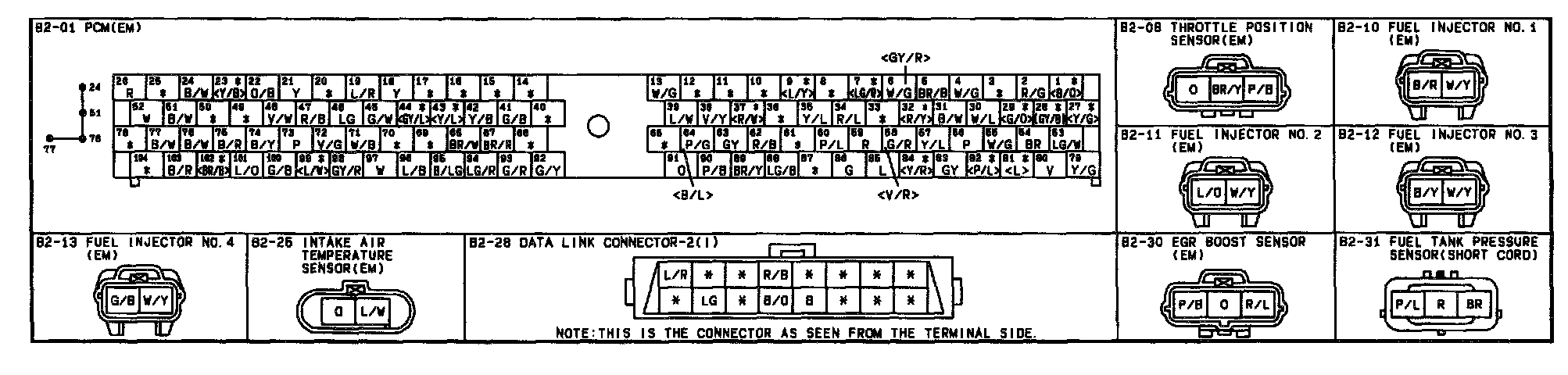

B-2e - EC-AT Control System (FS)/Engine Control System Connectors (FS):
