Ignition Coil Removal/Installation

WARNING: This page is about a different car, the 2004 Mazda RX-8. However, it is still accessible from the selected car via links, so may be relevant.

Remove the engine cover. (See ENGINE COVER REMOVAL/INSTALLATION .)
Remove the battery cover.
Remove the negative battery cable. (See BATTERY REMOVAL/INSTALLATION .)
Remove the air cleaner duct. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION .)
Remove in order indicated. See Fig 1.

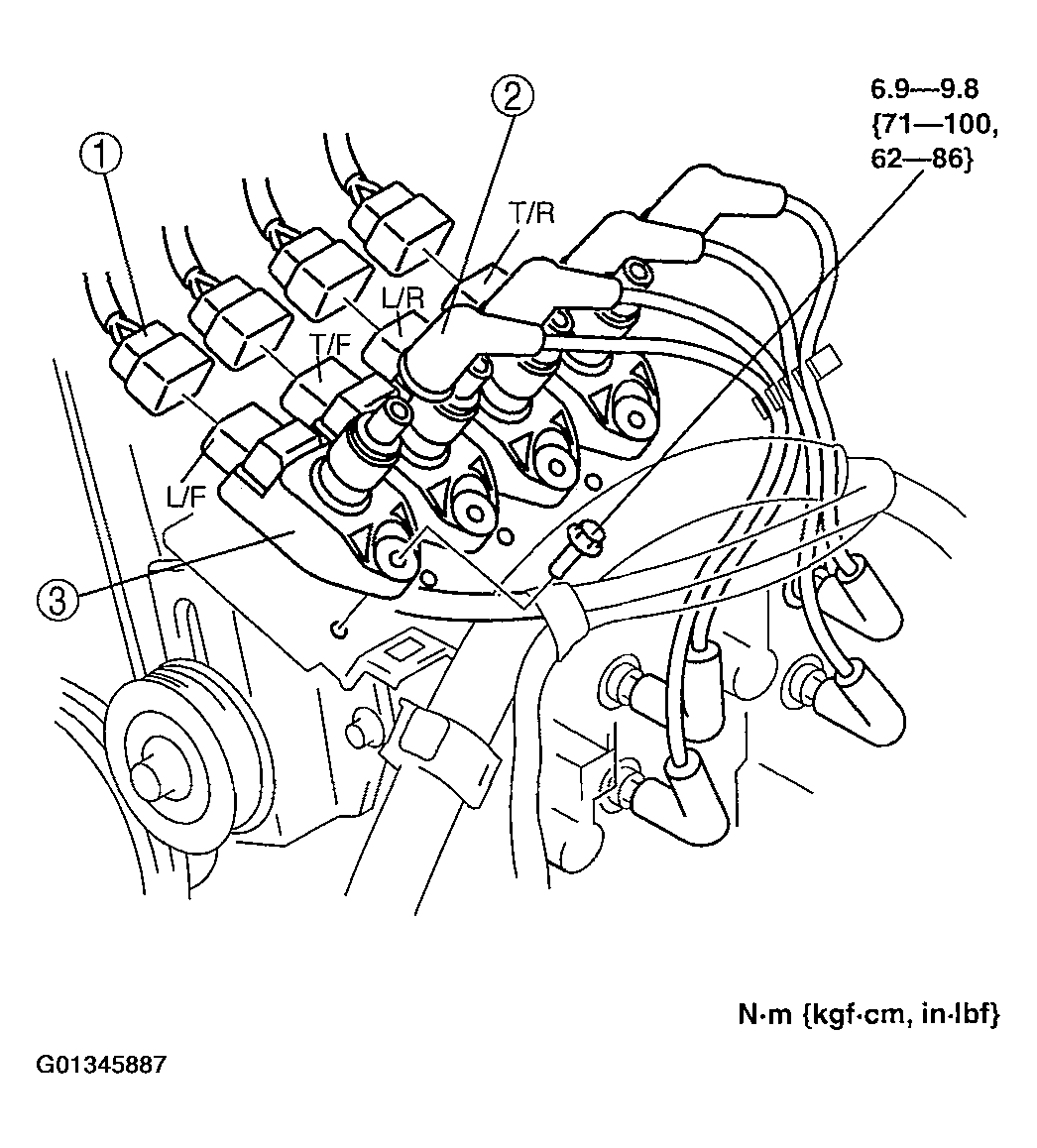

Fig 1: Removal/Installation Sequence Of Ignition Coil
Courtesy of MAZDA MOTORS CORP.

Fig 2: Removing/Installing Ignition Coil
Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
