Connector Locations

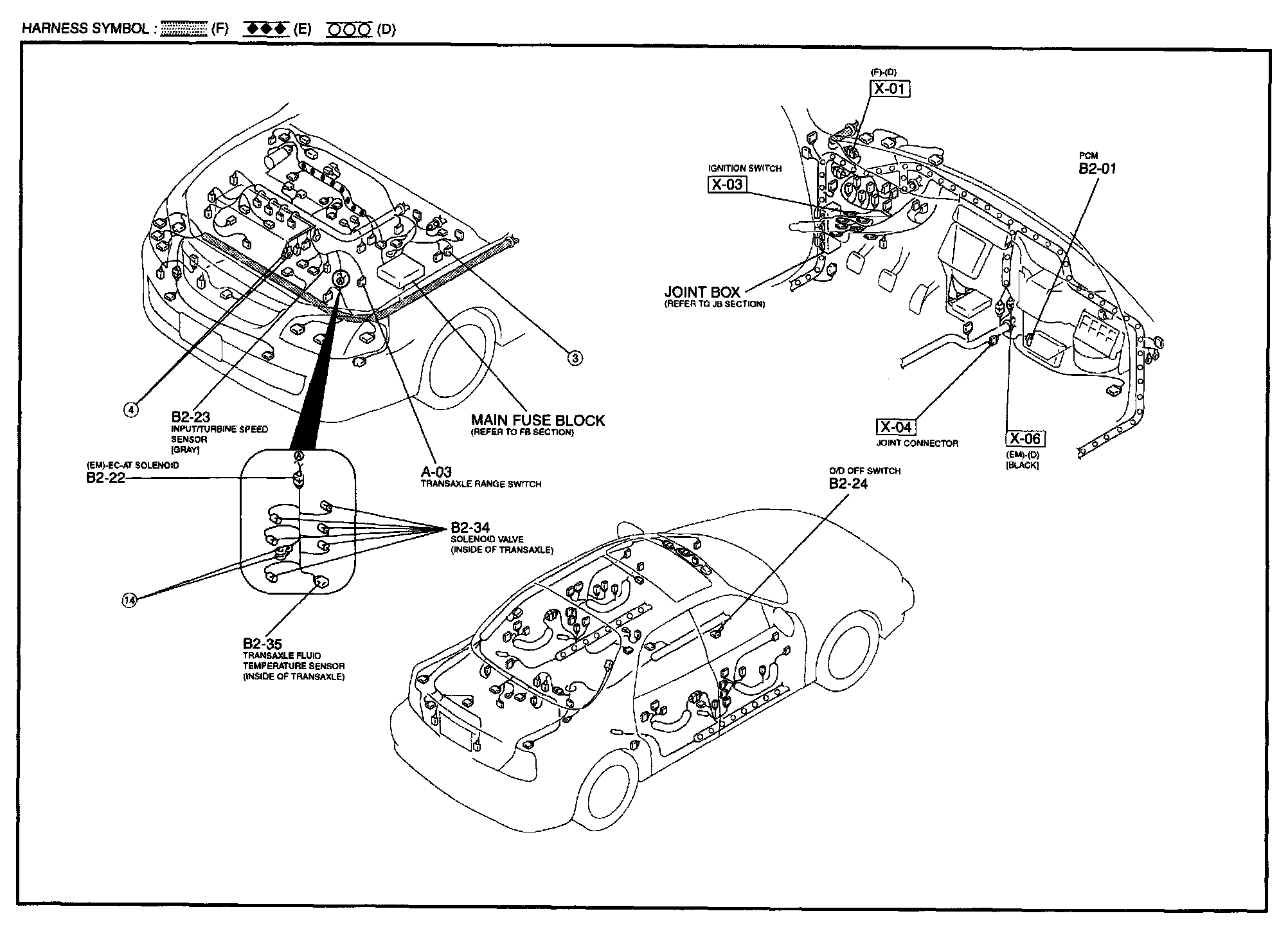

B-2a - EC-AT Control System/Engine Control System Harness/Connector Symbols:

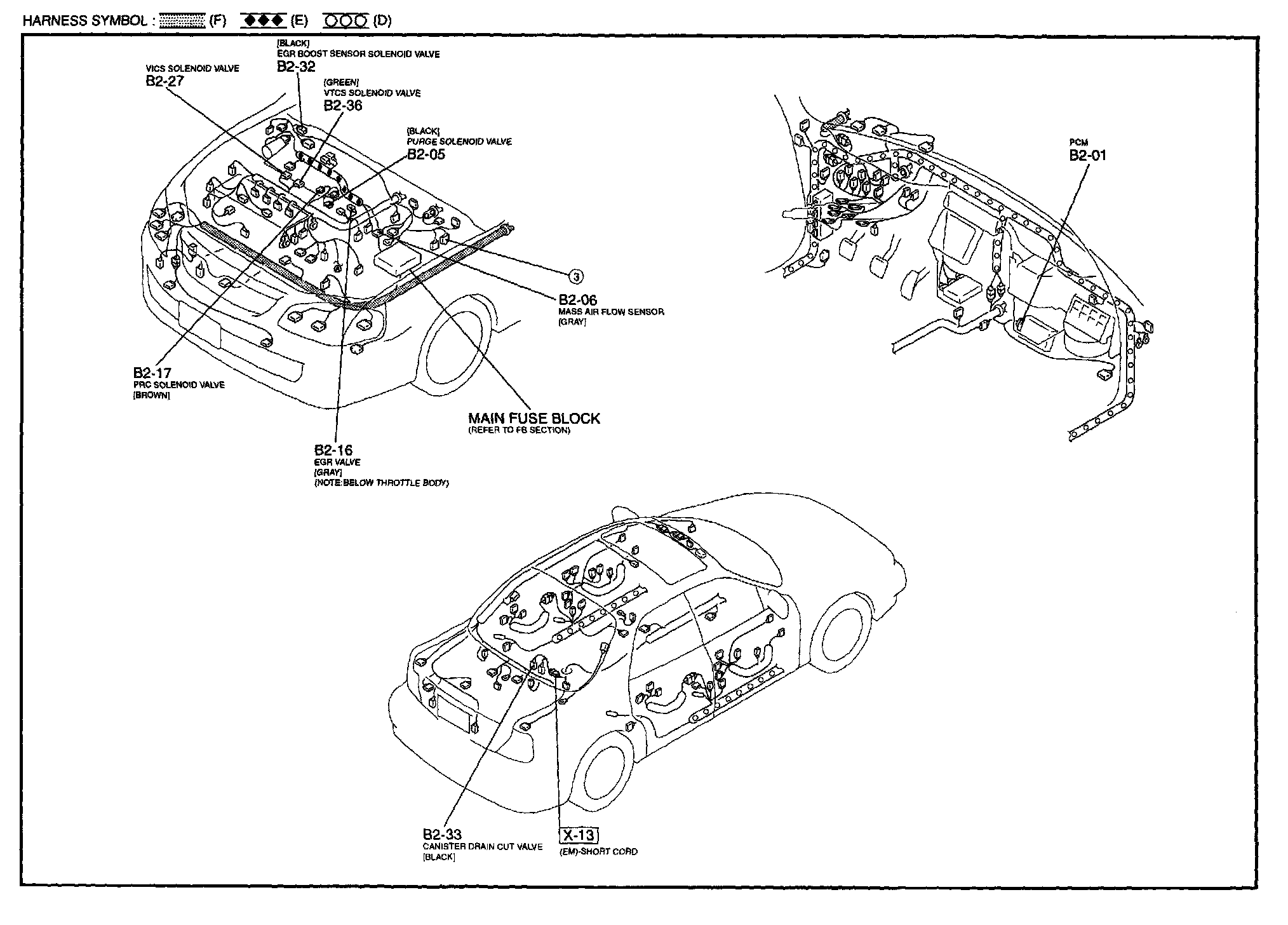

B-2b - EC-AT Control System/Engine Control System Harness/Connector Symbols:

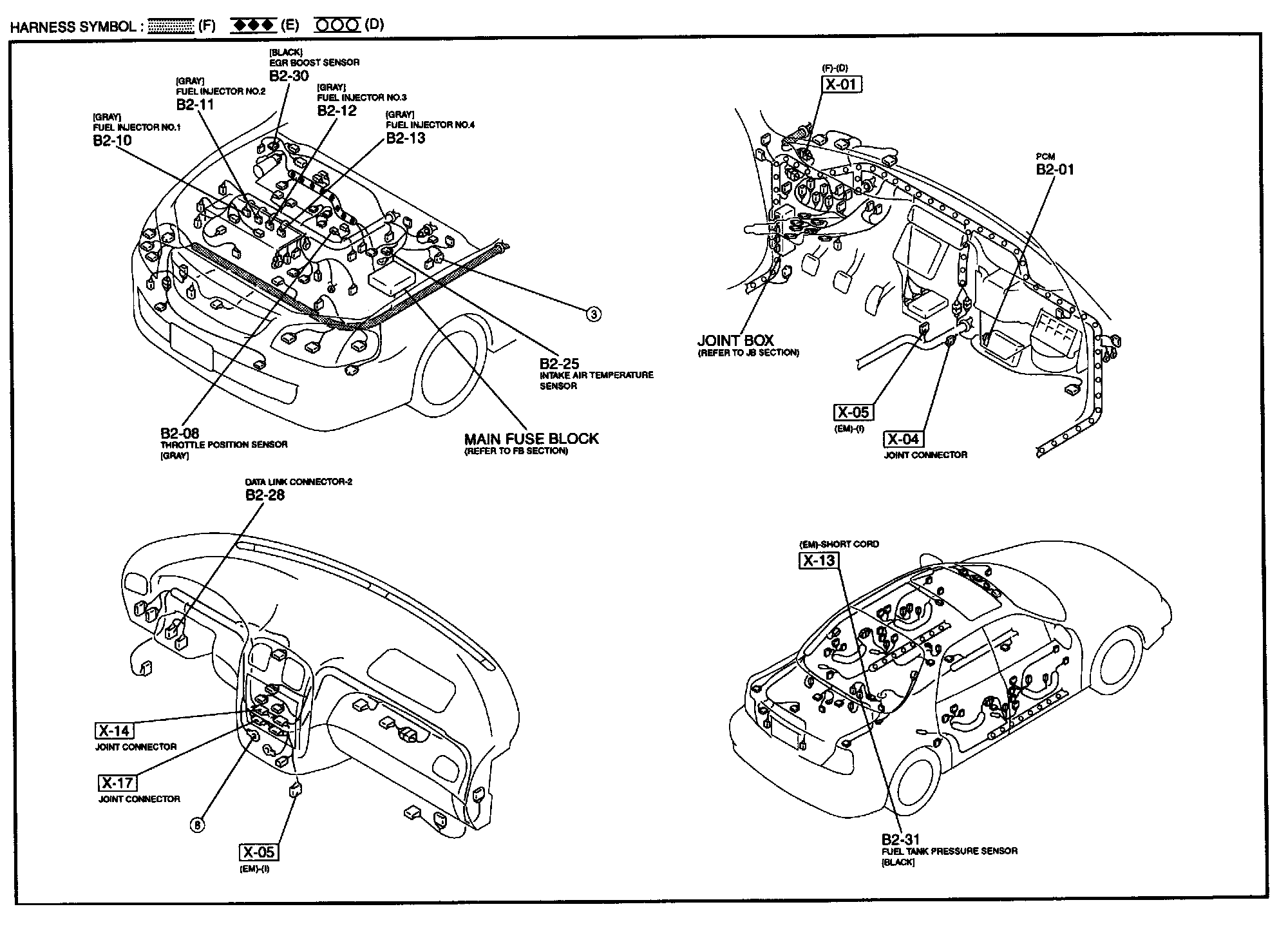

B-2c - EC-AT Control System/Engine Control System Harness/Connector Symbols:

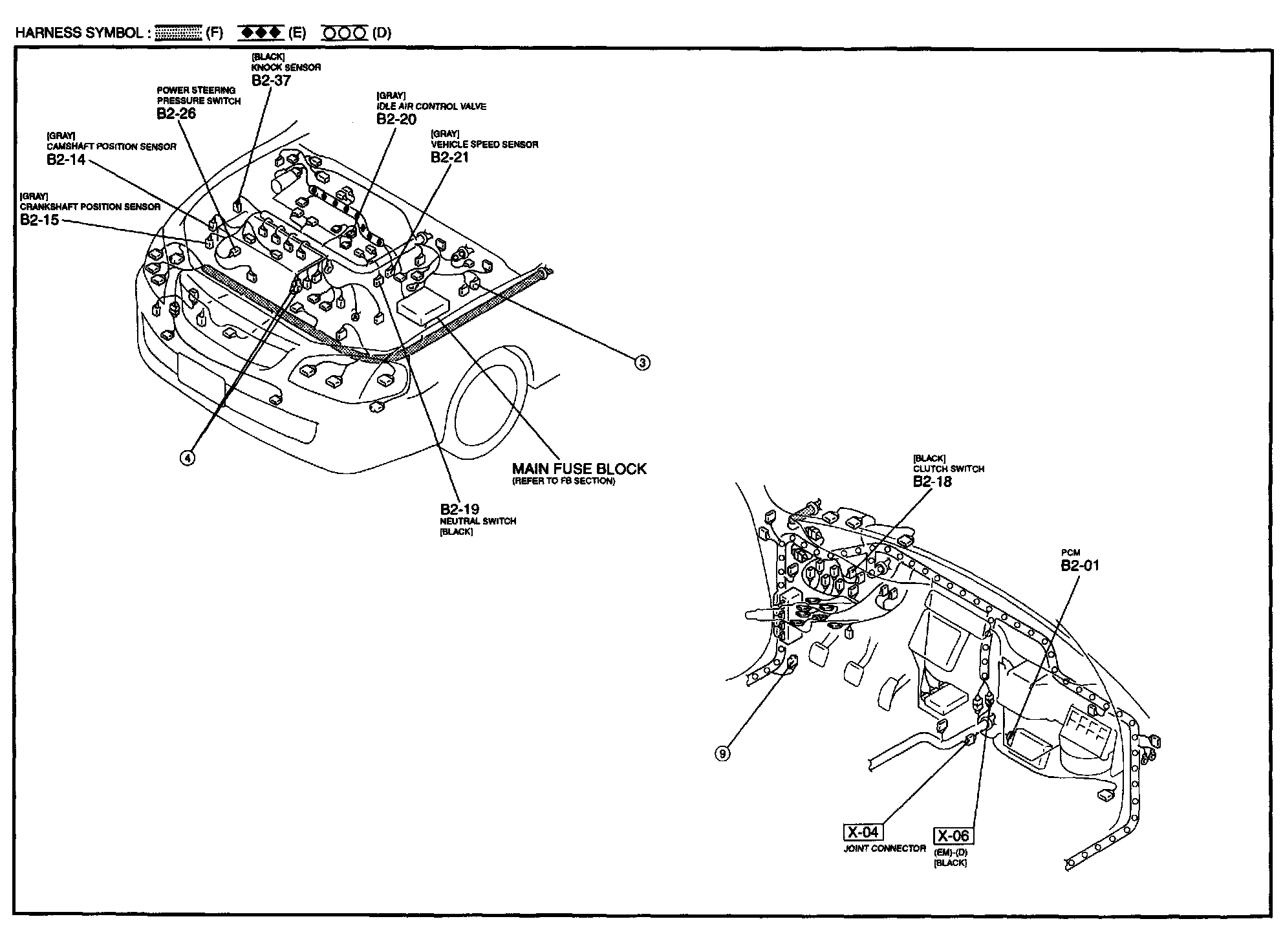

B-2d - EC-AT Control System/Engine Control System Harness/Connector Symbols:

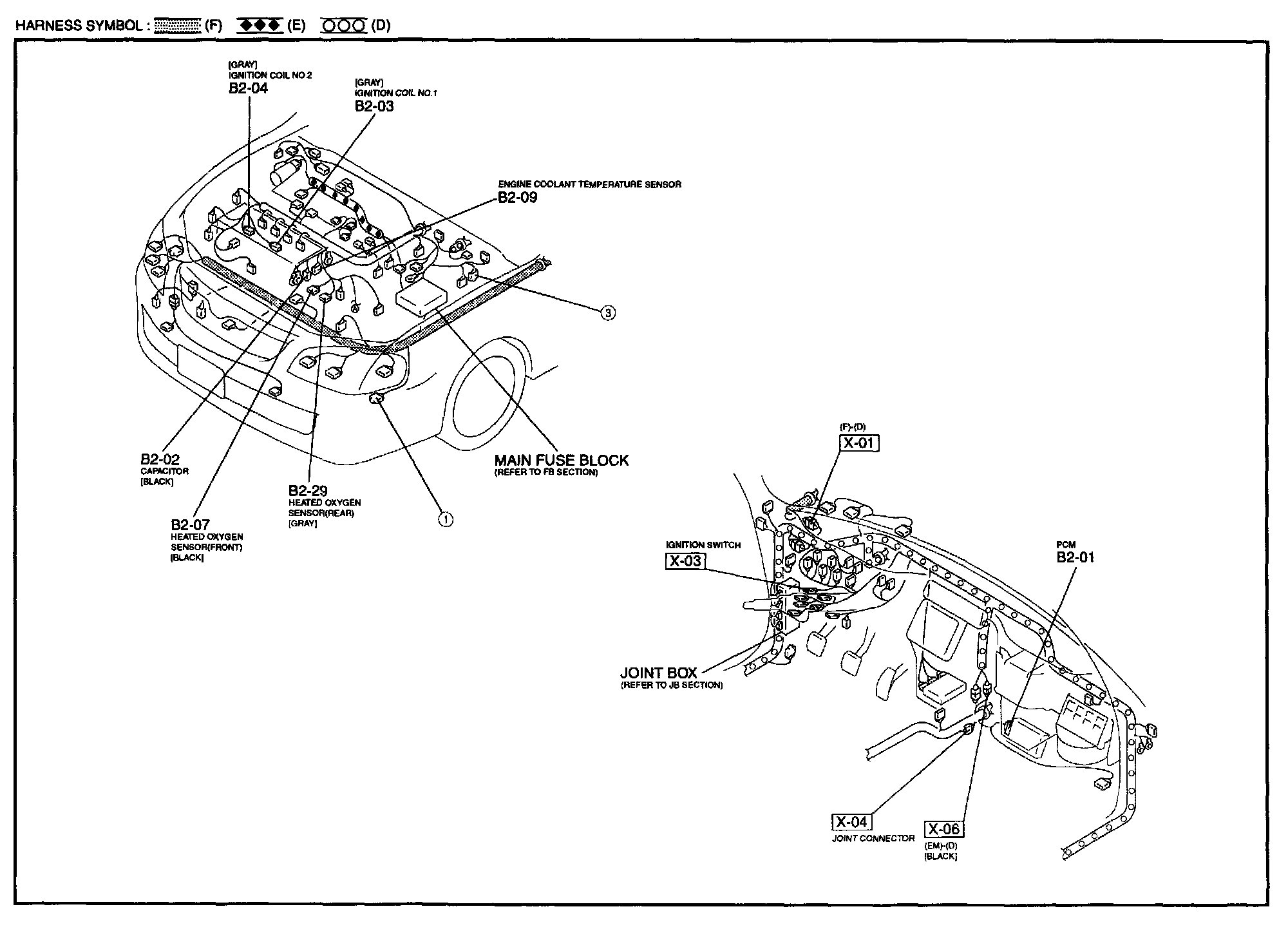

B-2e - EC-AT Control System/Engine Control System Harness/Connector Symbols:
