Heating and Air Conditioning

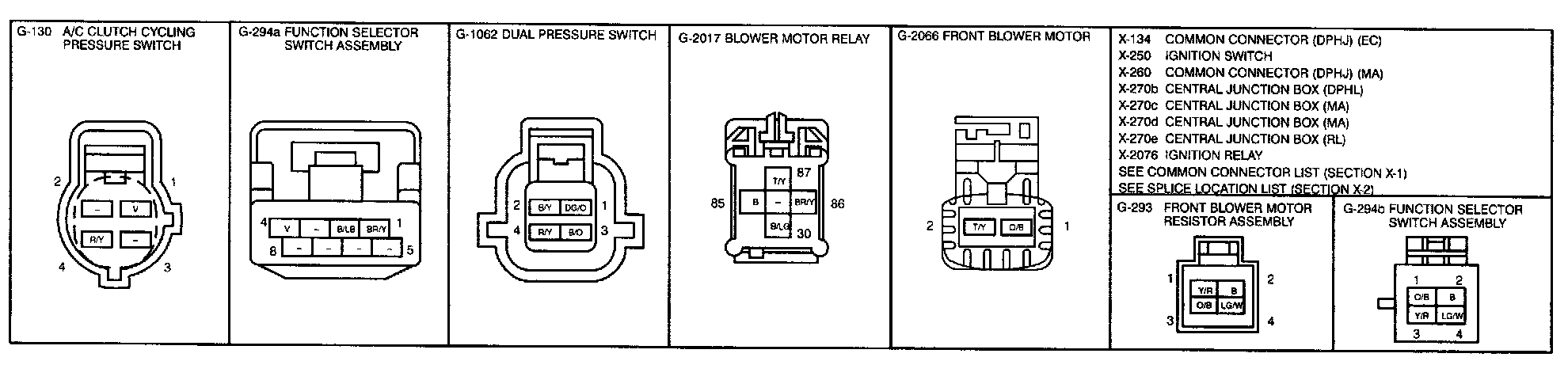

G-a - Heating / A/C System Connectors:

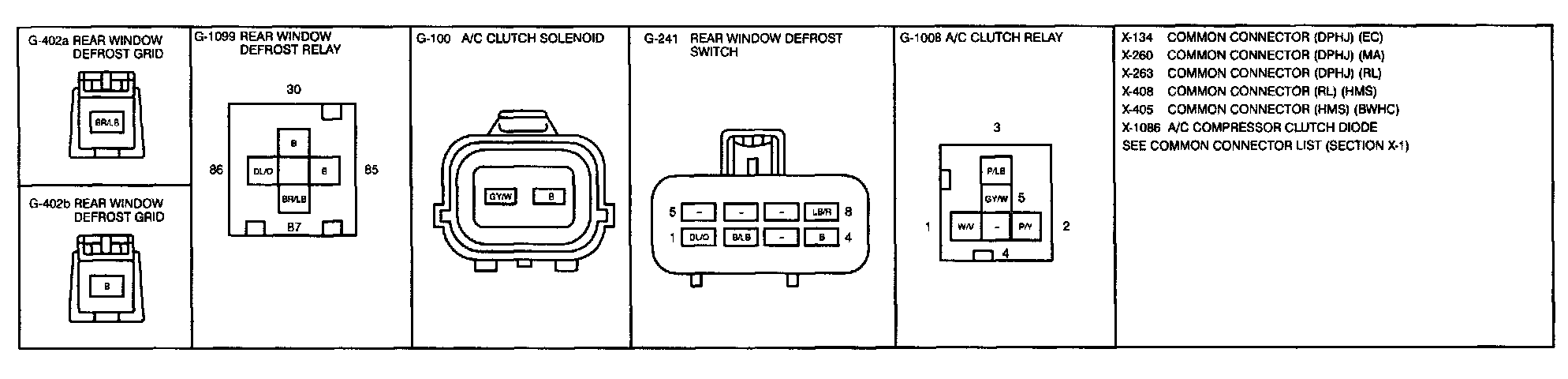

G-b - Heating / A/C System Connectors:
