PID/Data Monitor Item Table

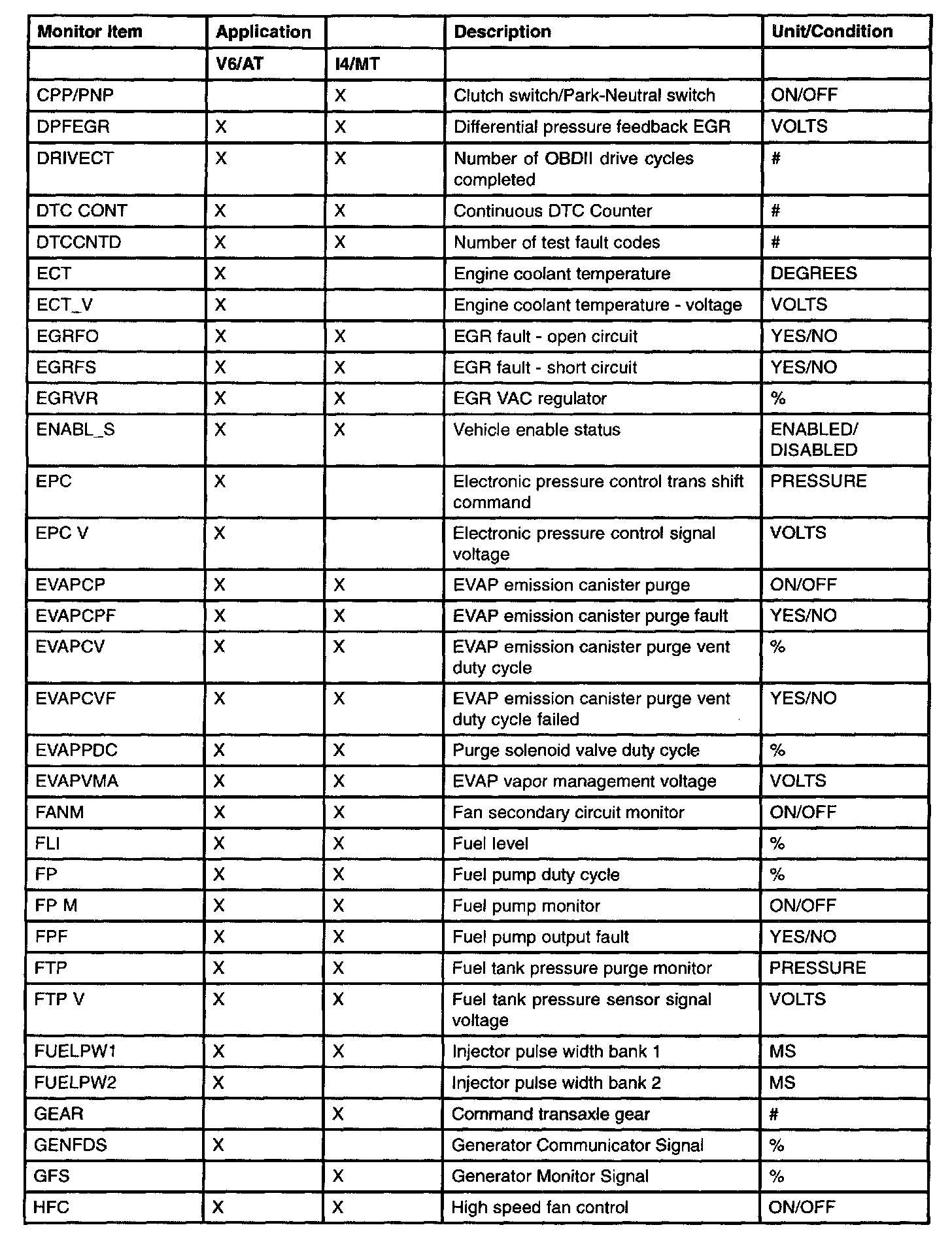

PID/DATA Monitor Item Table (Part 1):

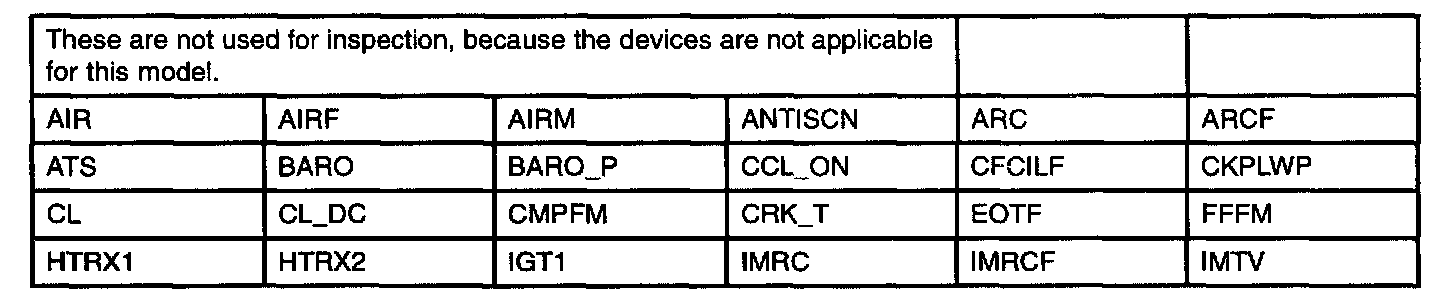

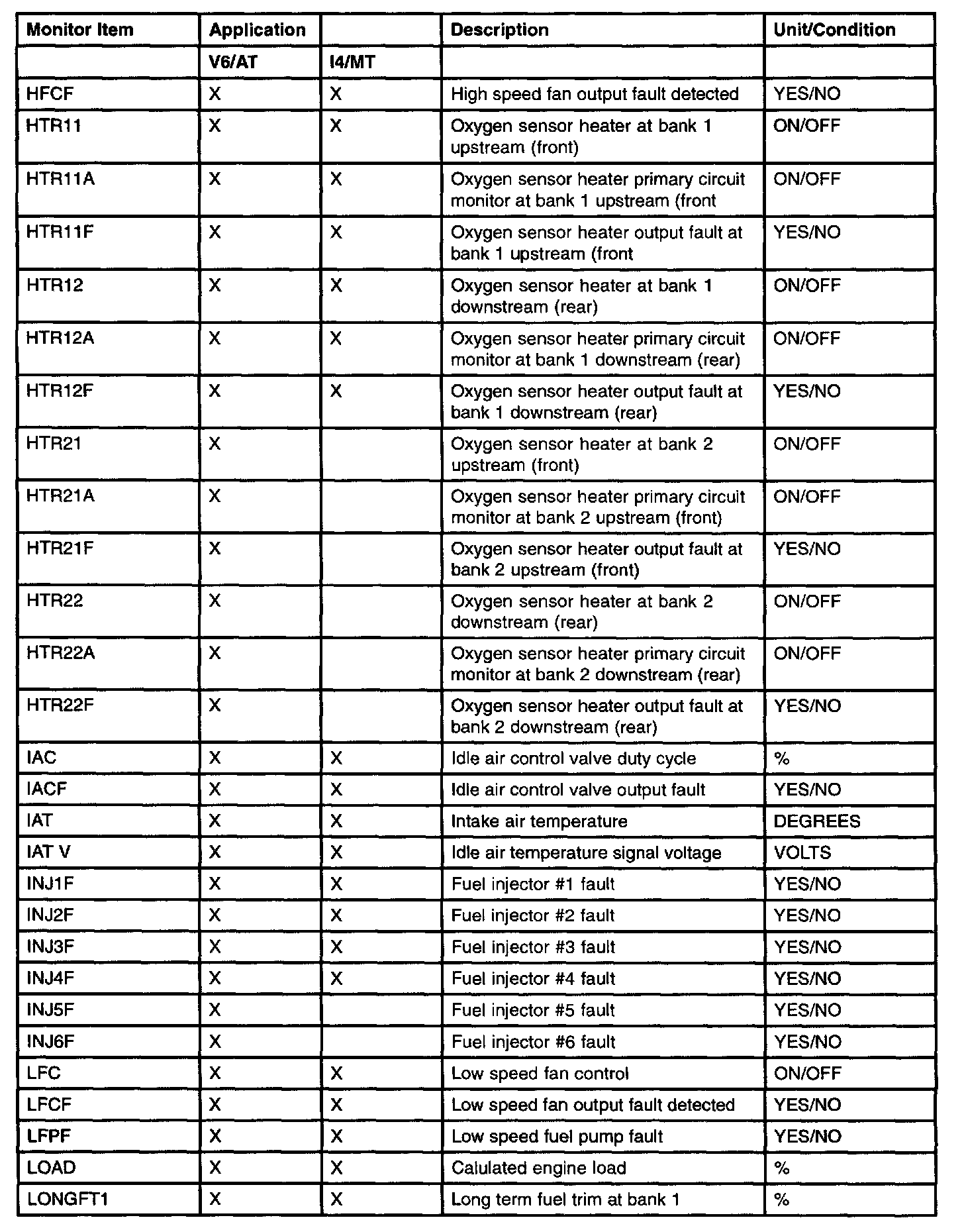

PID/DATA Monitor Item Table (Part 2):

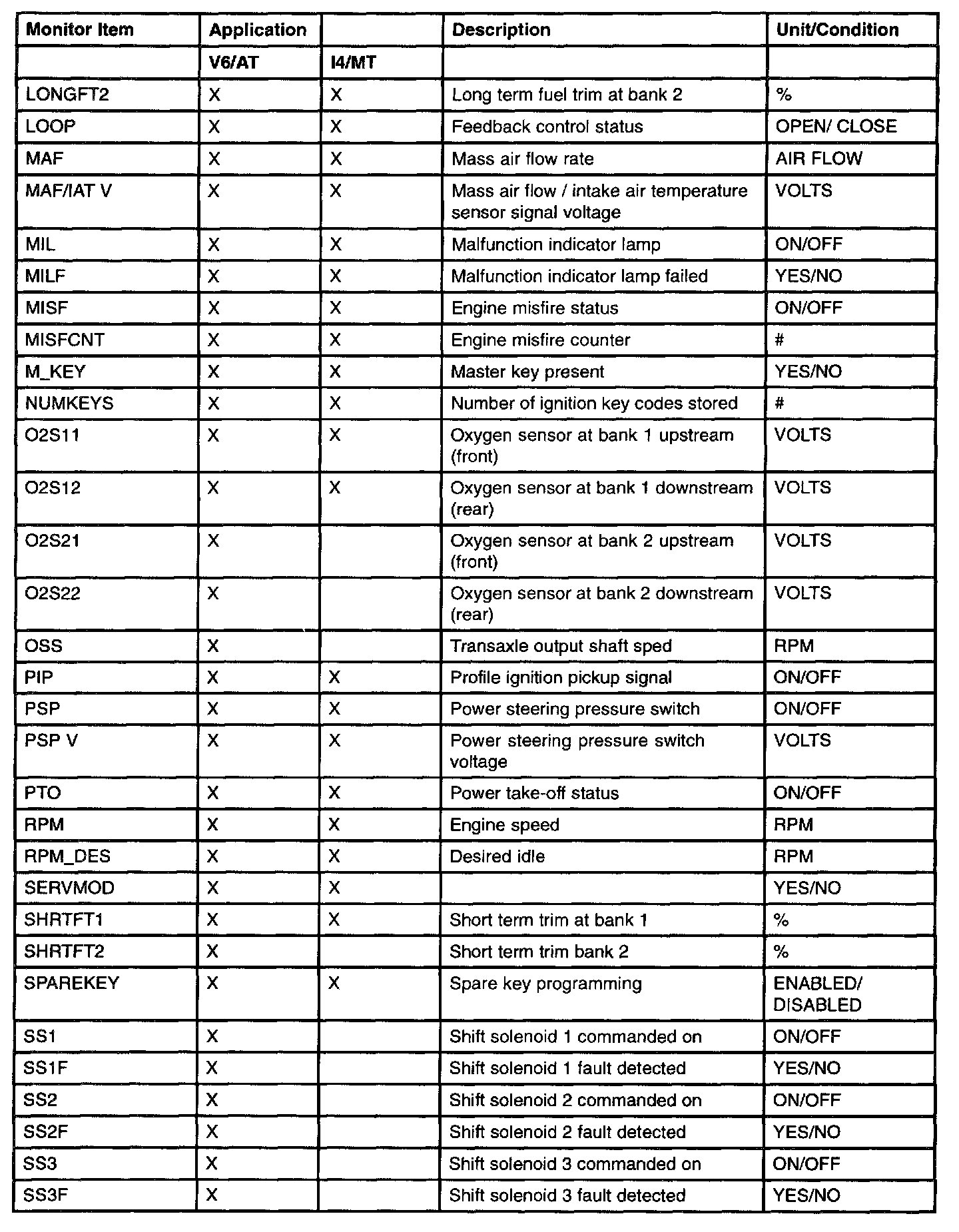

PID/DATA Monitor Item Table (Part 3):

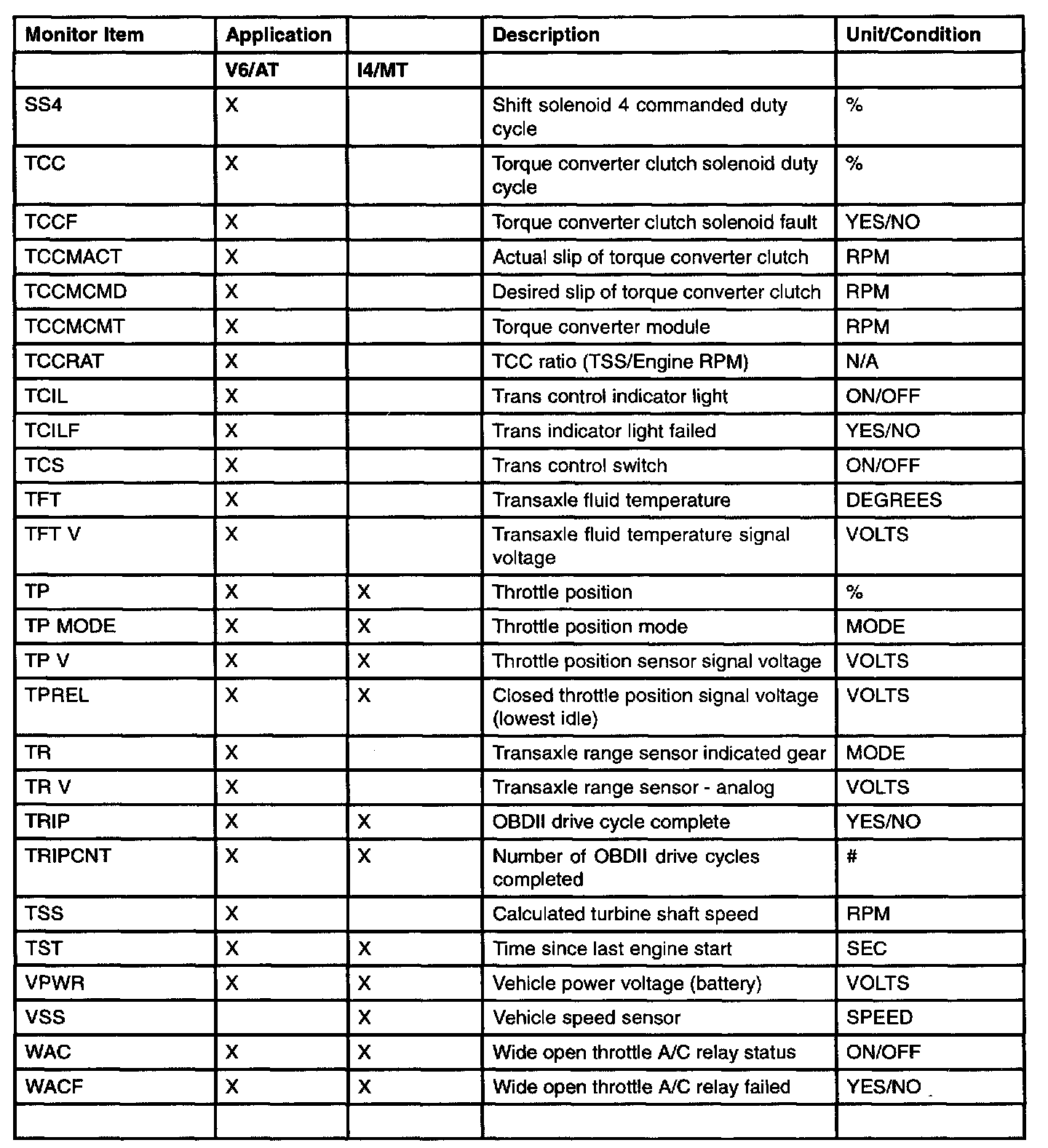

PID/DATA Monitor Item Table (Part 4):

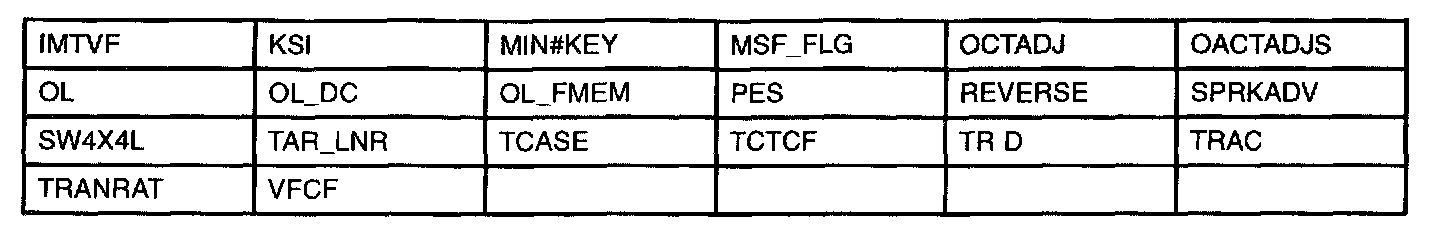

PID/DATA Monitor Item Table (Part 5):

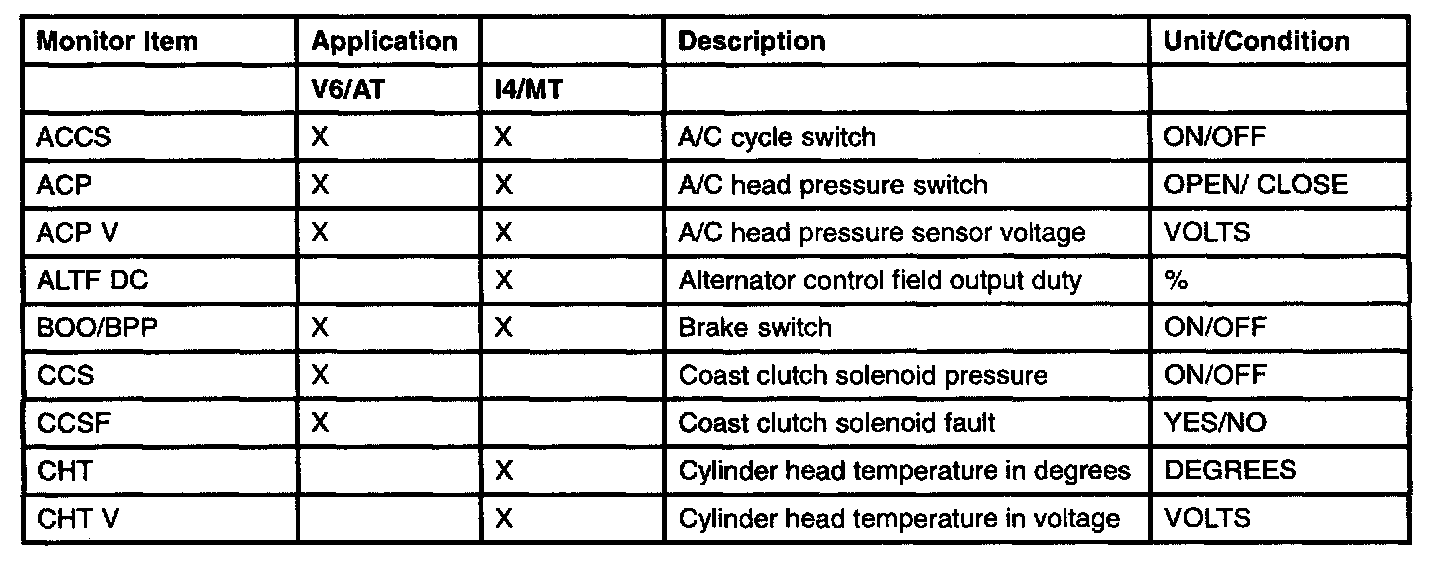

PID/DATA Monitor Item Table (Part 1):



PID/DATA Monitor Item Table (Part 2):
