Disassembly Note

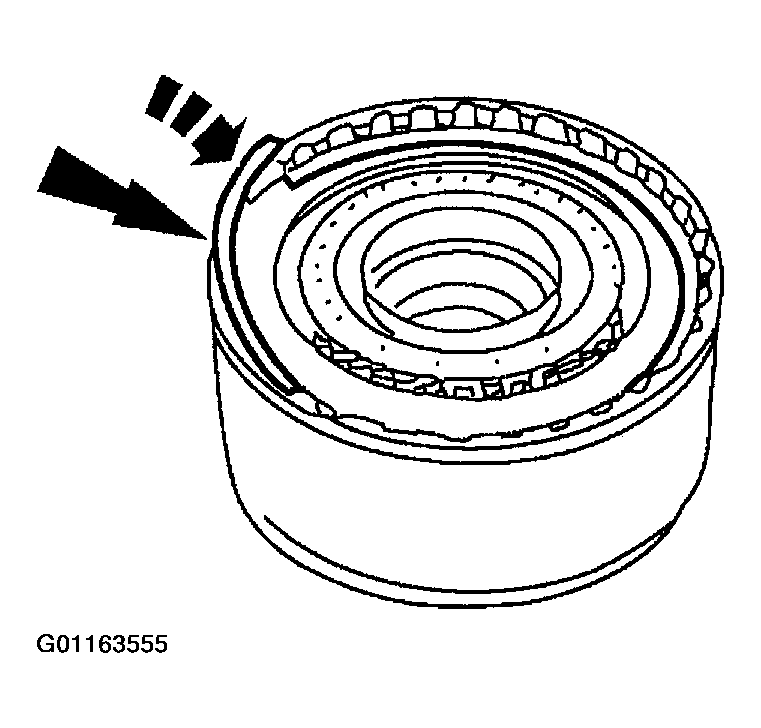

- Remove the reverse clutch pressure plate retainer snap ring.

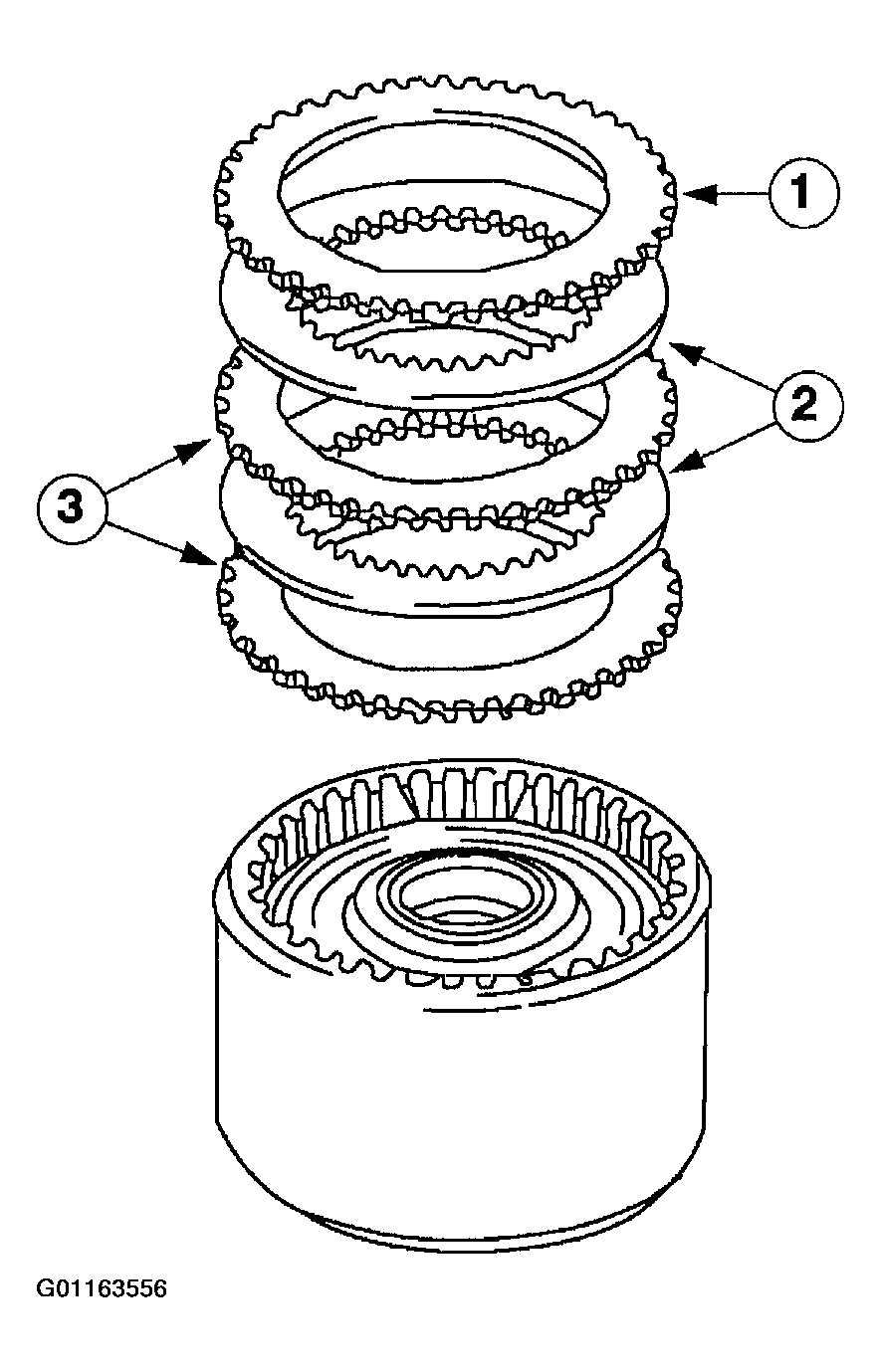

- Remove the reverse clutch plates.
- Pressure plate.
- Friction plate.
- Steel plate.
- Inspect for damage or wear.
WARNING:
Use caution when releasing tool pressure on the clutch piston springs. Failure to follow these instructions can result in personal injury.
CAUTION:
Do not compress the reverse clutch return springs completely.
- Remove the retaining ring.

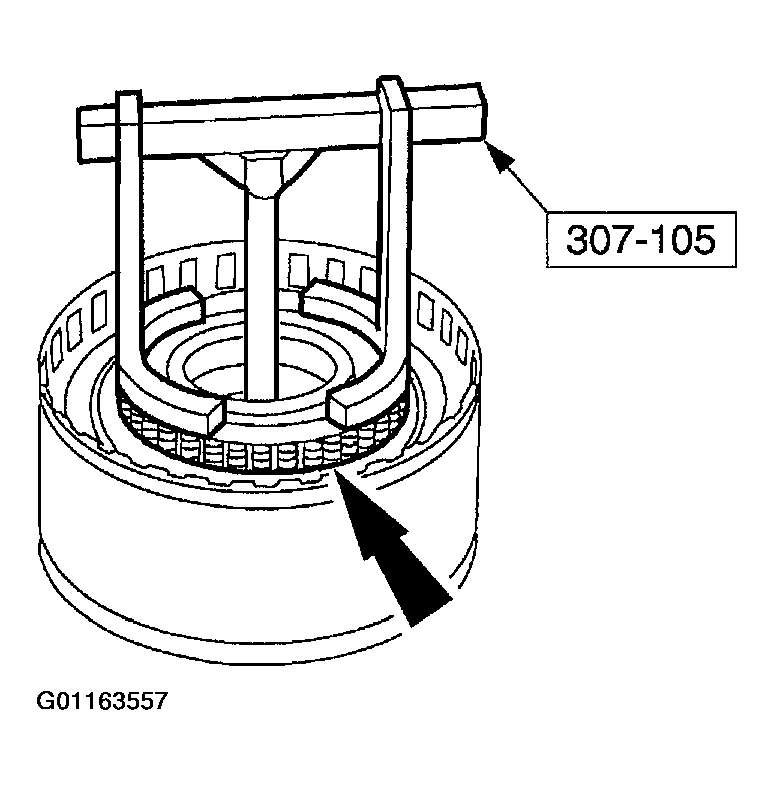

- Using the special tool, compress the reverse clutch return springs.

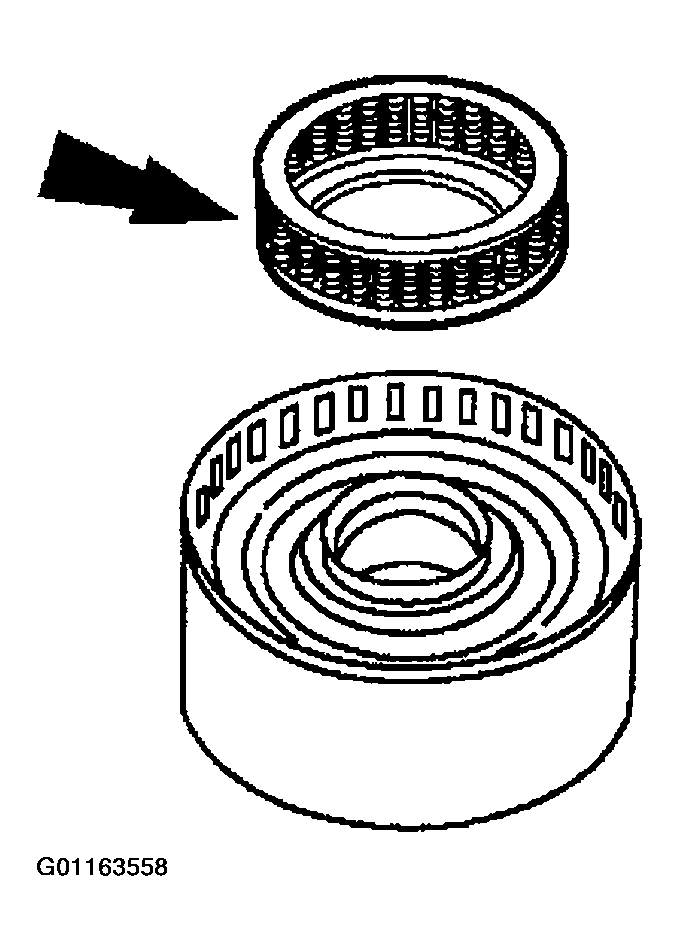

- Remove the reverse clutch return spring assembly.

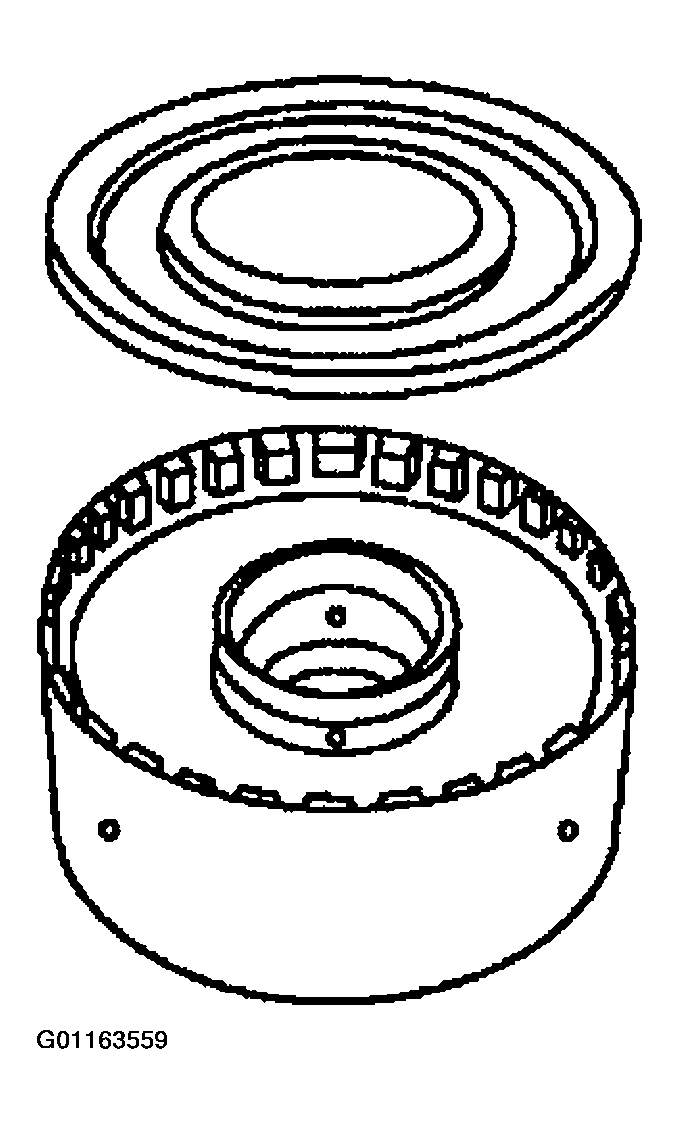

- Remove the reverse clutch piston assembly.
WARNING:
Air pressure must not exceed 138 kPa (20 psi). Wear safety glasses when using compressed air. Failure to follow these instructions can result in personal injury.
NOTE:
Do not clean the clutch plates in a vapor degreaser or with any other type of detergent solution. Clean all parts thoroughly in a clean solvent and blow dry with moisture-free regulated compressed air.
- Clean the friction steel plates with a lint-free cloth.
- Inspect the parts for damage and wear:
- Clutch plates.
- Piston and seals.
- Bushings.
- Check ball in drum.
- Drum outer surface band contact area.
- Piston bore.
