Entertainment Systems: Service and Repair

CONDENSER REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. High-mount brake light (See Service and Repair)

b. Rear seat cushion (See Rear Seat Cushion Removal/Installation)

c. Rear side seat back Rear Side Seat Back Removal/Installation

d. C-pillar trim C-Pillar Trim Removal/Installation

e. Rear package trim Service and Repair

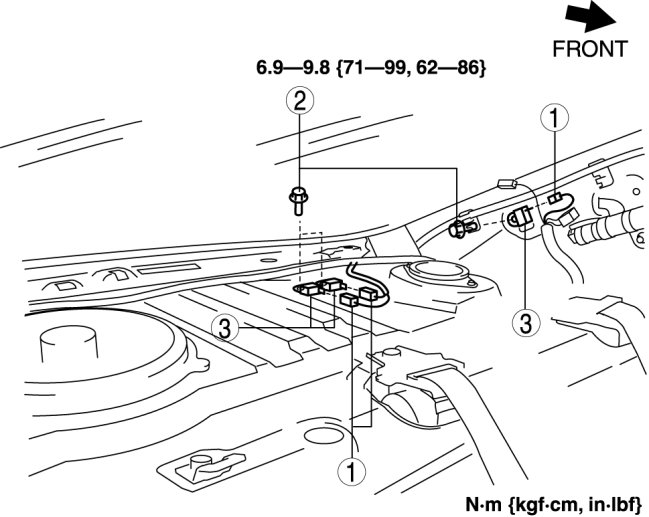

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
