Manual Transaxle Location Index

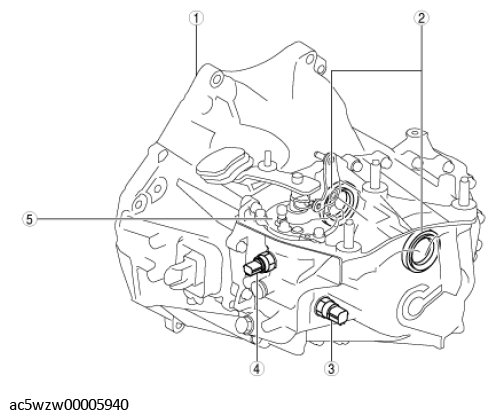

Fig 1: Manual Transaxle Components Location (C66M-R)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Manual transaxle (See MANUAL TRANSAXLE OIL INSPECTION .) (See MANUAL TRANSAXLE OIL REPLACEMENT .) (See MANUAL TRANSAXLE REMOVAL/INSTALLATION .) (See INSPECTION AFTER MANUAL TRANSAXLE OVERHAUL .)
2	Oil seal (differential) (See OIL SEAL (DIFFERENTIAL) REPLACEMENT .)
3	Back-up light switch (See BACK-UP LIGHT SWITCH REMOVAL/INSTALLATION .)
4	Neutral switch (See NEUTRAL SWITCH REMOVAL/INSTALLATION .)
5	Shift control module (See SHIFT CONTROL MODULE REMOVAL/INSTALLATION .)
