DSC HU/CM Connector Installation Note

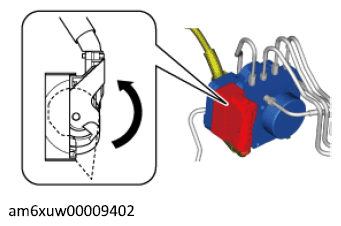

Connect the connector and pull the lock lever up in the direction of the arrow below.

Fig 1: Pulling Lock Lever Up In Direction
Courtesy of MAZDA MOTORS CORP.
After connecting the connector, verify that the connector cover is completely pushed in.
