Insulator (Front) Installation Note
WARNING: This page is about a different variant/trim than selected.

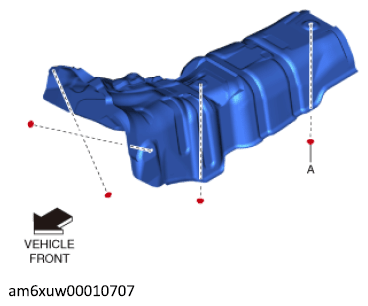

- Tighten nut A shown in the figure below to the specified torque.
Courtesy of MAZDA MOTORS CORP.
Tightening torque
8-10 N m {82-101 kgf.cm, 71-88 in.lbf}
- Tighten the remaining nuts to the specified torque.
Tightening torque
8-10 N.m {82-101 kgf.cm, 71-88 in.lbf}
