Primary Shaft Component Disassembly: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Disassemble the primary shaft component as shown in the figure.

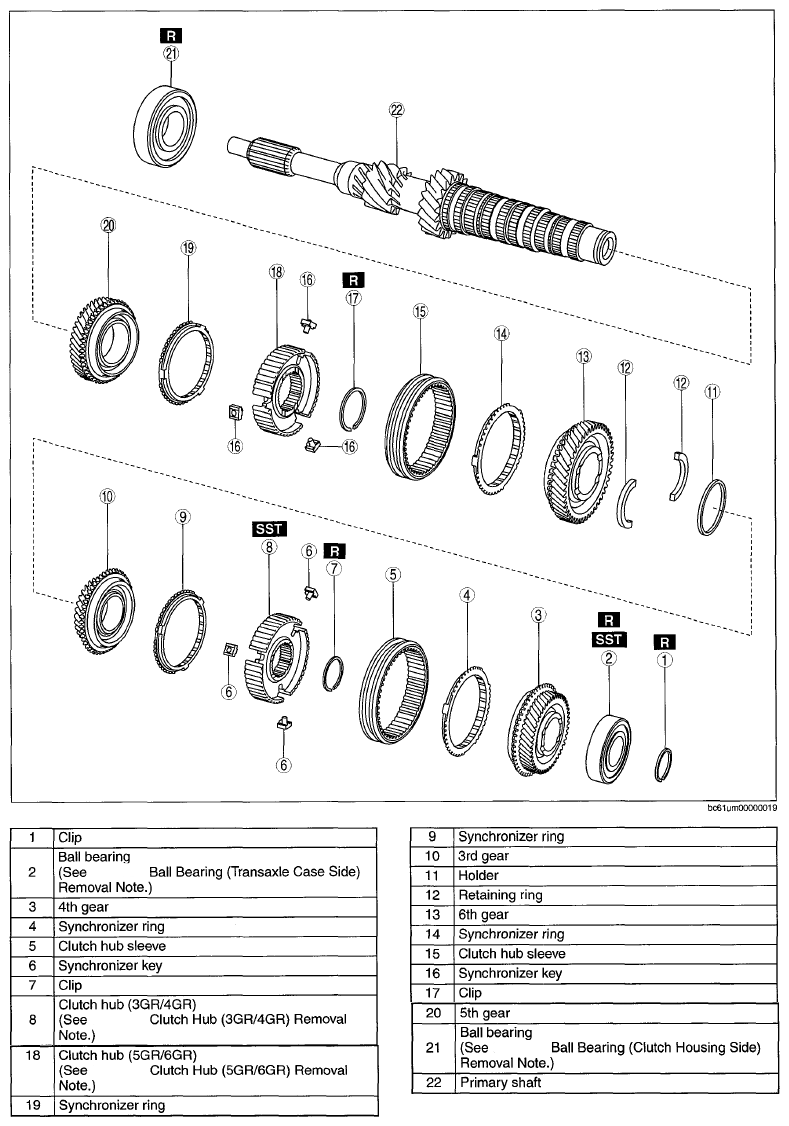

    Fig 1: Identifying Primary Shaft Component Disassembling Order
    G08347847
