Starting System Location Index

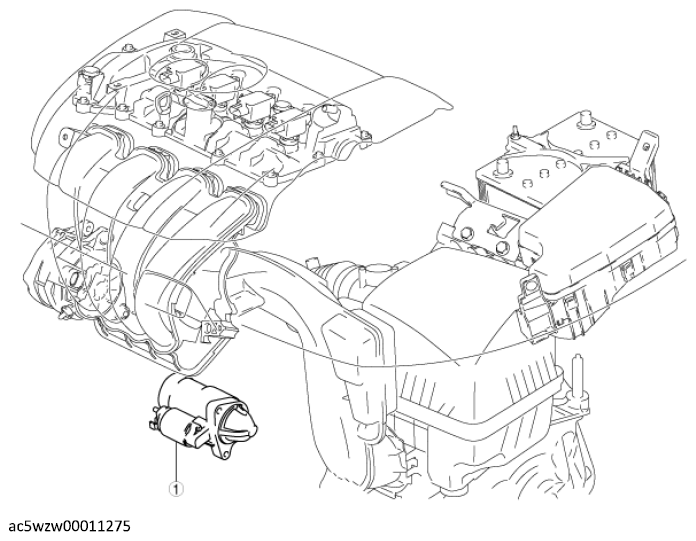

Fig 1: Starting System Component
G12184549Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION

1 Starter
(See Starter Removal/Installation .)
(See Starter Inspection .)
