Air Cleaner Cover Installation Note

  1. Install the air cleaner cover as shown in the figure below.

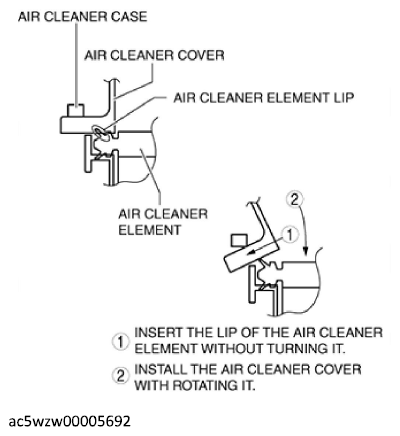

    Fig 1: Installing Air Cleaner Cover
    G12184233Courtesy of MAZDA MOTORS CORP.
  2. Secure the air cleaner cover and the air cleaner case with the clip.

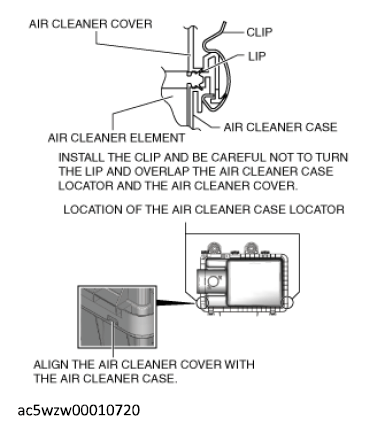

    Fig 2: Securing Air Cleaner Cover And Air Cleaner Case With Clip
    G12184249Courtesy of MAZDA MOTORS CORP.
