Trunk Covering Removal/Installation: Sedan-4SD

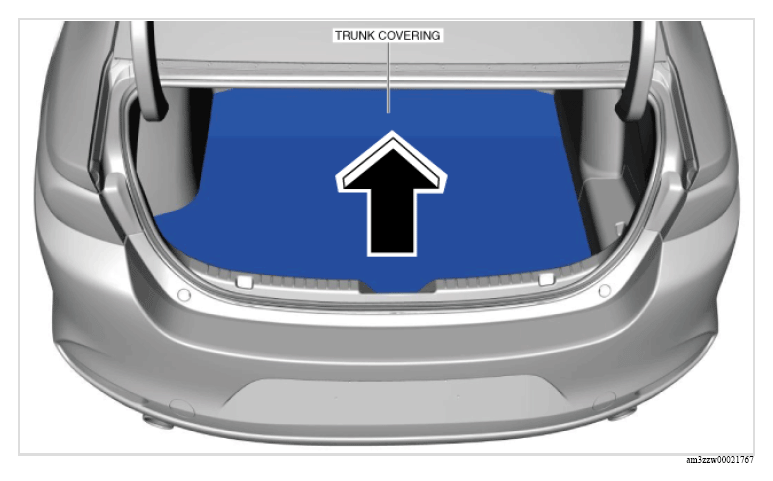

  1. Remove the trunk covering in the direction of the arrow shown in the figure.
    G13179546Courtesy of MAZDA MOTORS CORP.
  2. Install in the reverse order of removal. (See TRUNK COVERING INSTALLATION NOTE .)
