Stator coil

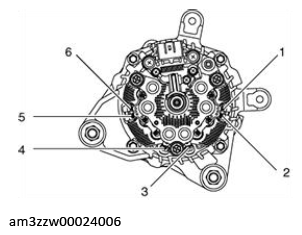

Verify that the continuity is as indicated in the table.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
If there is any malfunction, replace the generator.
Generator stator coil resistance (between slip rings) [20°C {68°F}]
0.054-0.060 ohms
Courtesy of MAZDA MOTORS CORP.
