Rear (Sedan-4SD): Notes

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION .)
    2. C-pillar trim (See C-PILLAR TRIM REMOVAL/INSTALLATION .)
    3. Rear seat cushion (See REAR SEAT CUSHION REMOVAL/INSTALLATION .)
    4. Rear seat back (See REAR SEAT BACK REMOVAL/INSTALLATION .)
    5. Tire house trim (See TIRE HOUSE TRIM REMOVAL/INSTALLATION .)
    6. Rear package trim (See REAR PACKAGE TRIM REMOVAL/INSTALLATION .)
  3. Remove the bolts. (See BOLT INSTALLATION NOTE .)

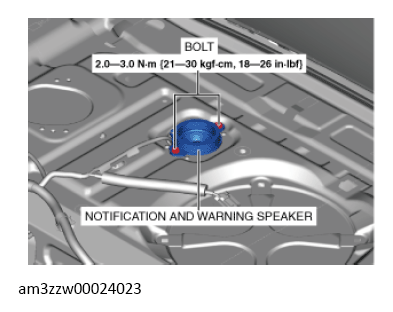

    Fig 1: Notification And Warning Speaker Bolts With Torque Specification
    G13179972Courtesy of MAZDA MOTORS CORP.

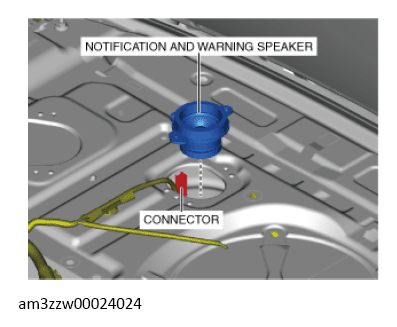

  4. Disconnect the connector.
    G13179973Courtesy of MAZDA MOTORS CORP.
  5. Remove the notification and warning speaker (rear).
  6. Install in the reverse order of removal.
