Mode 6 - 1999-2023 MAZDA: CX-5: 2013

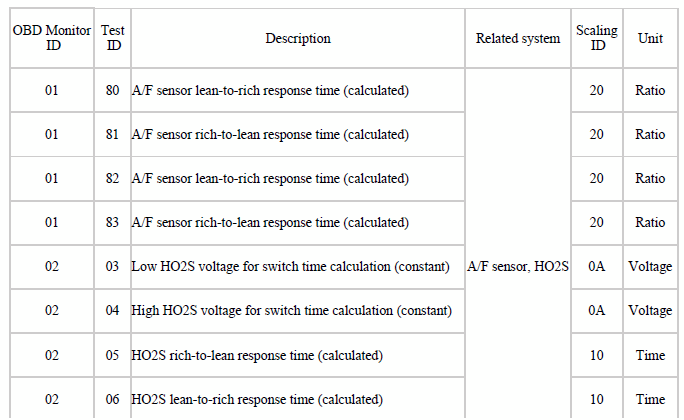

Fig 1: Mode $06 Data For '13 CX-5 (1 Of 3)

G00535146

Courtesy of MAZDA MOTORS CORP.

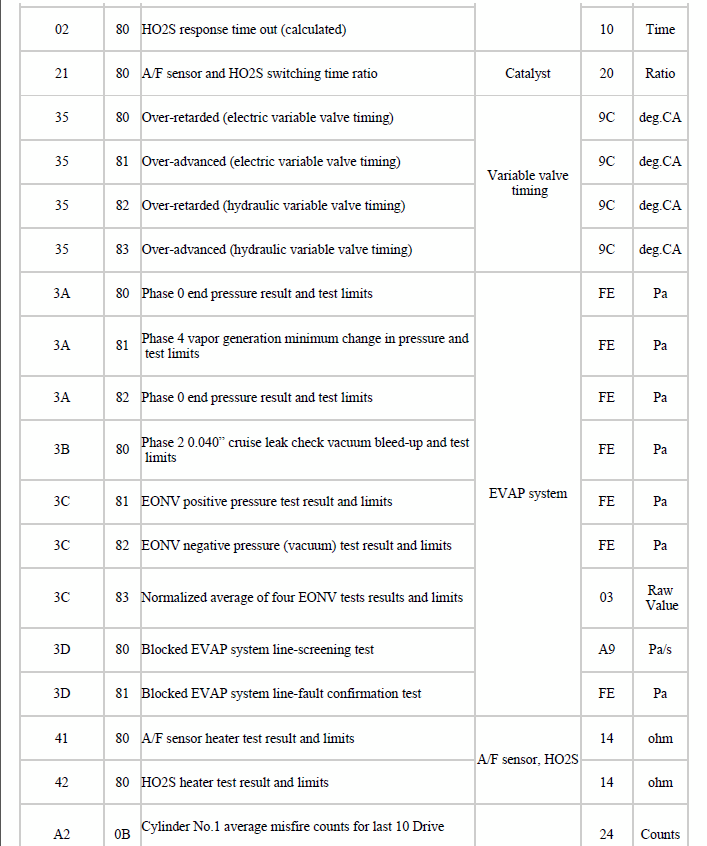

Fig 2: Mode $06 Data For '13 CX-5 (2 Of 3)

G00535147

Courtesy of MAZDA MOTORS CORP.

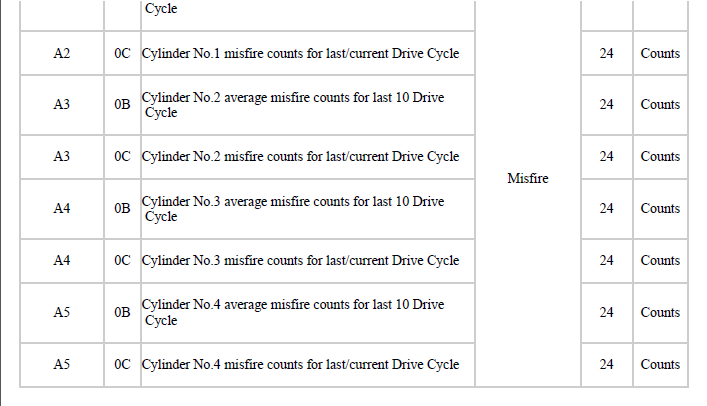

Fig 3: Mode $06 Data For '13 CX-5 (3 Of 3)

G00535148

Courtesy of MAZDA MOTORS CORP.
