Mode 6 - 1999-2023 MAZDA: CX-9: 2011-13

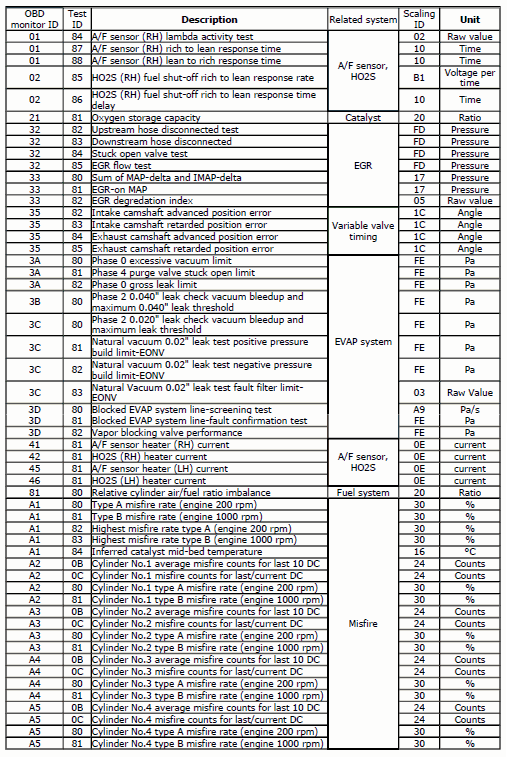

Fig 1: Mode $06 Data For '11-'13 CX-9

G00517170

Courtesy of MAZDA MOTORS CORP.
