Rotary Engine
Engine Configuration
Firing Order

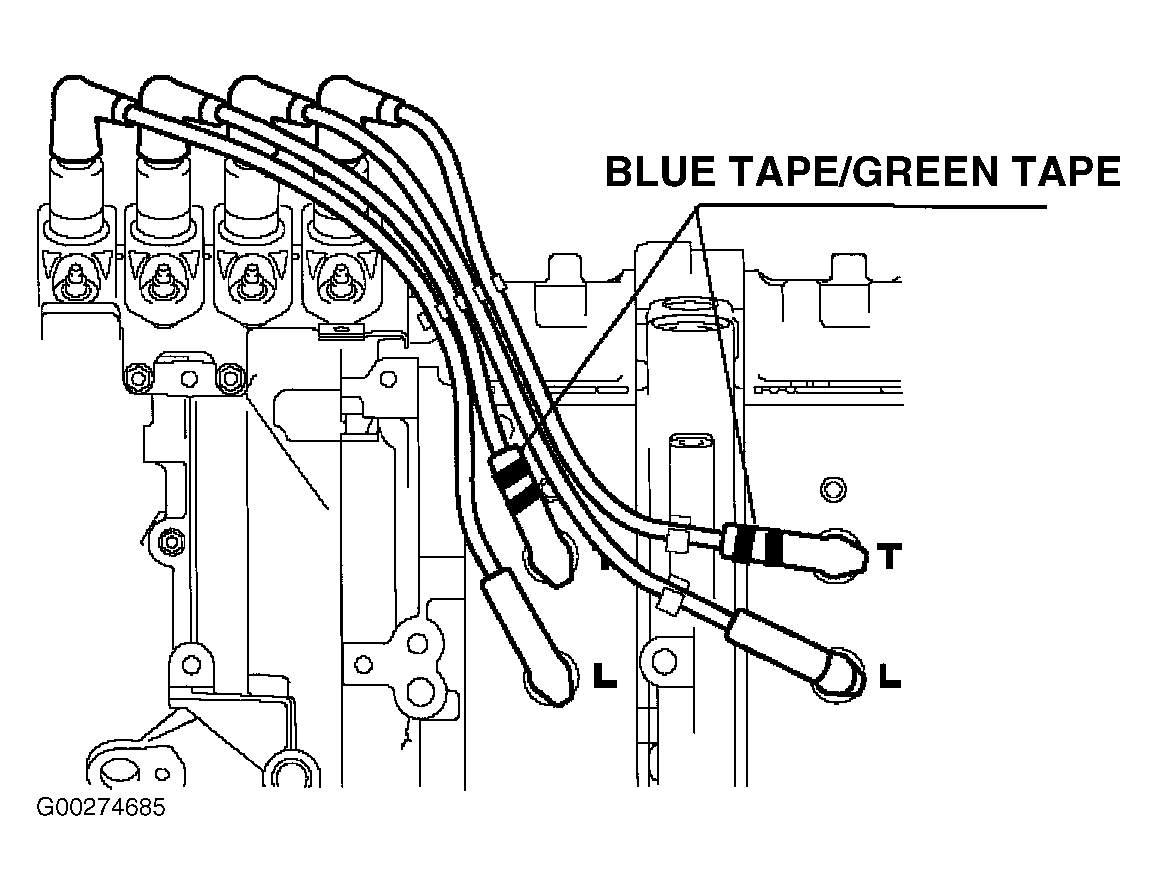

Cylinder Identification
Rotary
When idling: T/F-L/F-T/R-L/R
Except for idling: L/F-T/F-L/R-T/R
