Lower Radiator Hose Component Installation Note
WARNING: This page is about a different variant/trim than selected.
CAUTION:
- Do not apply oil (such as engine oil, ATF) to the gasket. Otherwise, the gasket could swell causing a seal malfunction.
- Install the lower radiator hose component using the following procedure:
- Insert a new gasket into the pipe groove.

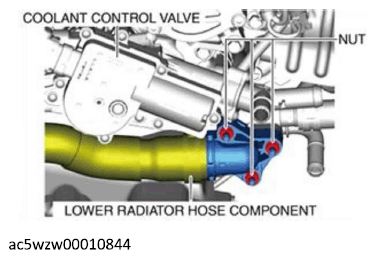

- Tighten the nuts shown in the figure.
 Courtesy of MAZDA MOTORS CORP.
|

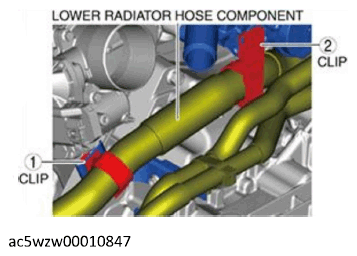

- Secure the lower radiator hose using clips in the order shown in the figure.
 Courtesy of MAZDA MOTORS CORP.
|
