Accelerator Pedal Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove in the order indicated in the table.

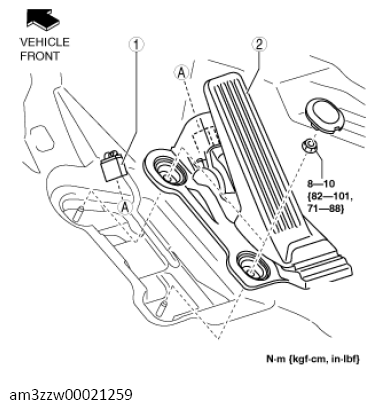

    Fig 1: Accelerator Pedal Components With Torque Specification
    G13713470Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 APP sensor connector
    2 Accelerator pedal
  3. Install in the reverse order of removal.
