Evaporative Hose Installation Note

WARNING: This page is about a different variant/trim than selected.

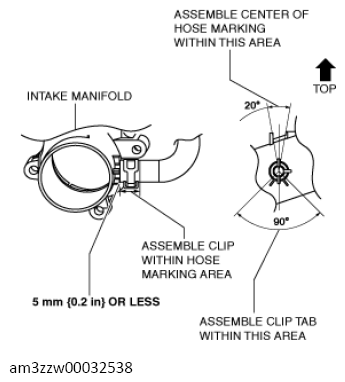

  1. Connect the evaporative hose as shown in the figure.
G13557126Courtesy of MAZDA MOTORS CORP.
