DTC C2003-13: Open Circuit In Steering Switch [Start Stop Unit]: Notes
DTC C2003:13 [START STOP UNIT] DETECTION CONDITION AND POSSIBLE CAUSE
| Description |
Open circuit in steering switch |
| Detection condition |
- Start stop unit detects an open circuit in the steering switch circuit for 5 s or more with the ignition switched ON (engine off or on).
|
| Fail-safe |
Not applicable |
| Possible cause |
- Clock spring connector or terminal malfunction
- Clock spring malfunction
- Start stop unit connector or terminal malfunction

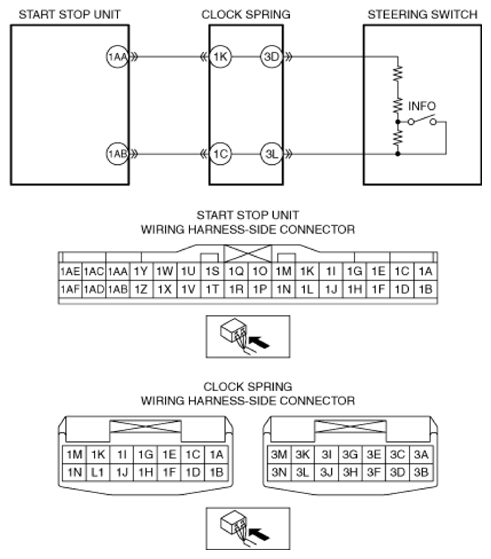

- Open circuit in wiring harness between the following terminals:
- Start stop unit terminal 1AA-Clock spring (start stop unit side) terminal 1K
- Start stop unit terminal 1AB-Clock spring (start stop unit side) terminal 1C
- Steering switch malfunction
- Start stop unit malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
