Steering Gear And Linkage Assembly: Notes
CAUTION:
- To prevent damage to the steering gear, secure it to the vise using a copper plate or clean cloth.

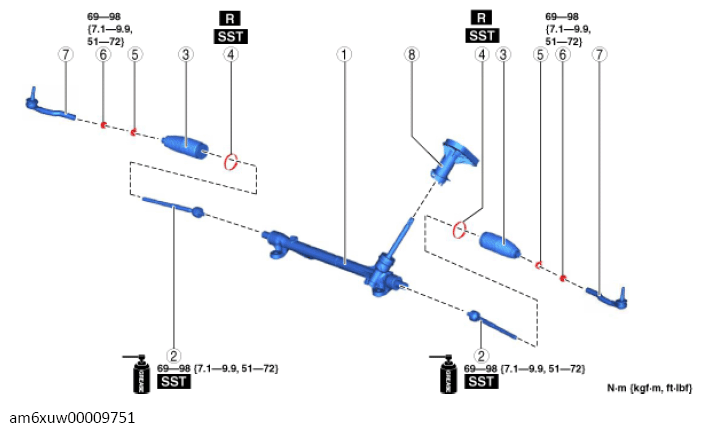

- Assemble in the order shown in the figure.
- Install the steering gear and linkage to the front crossmember. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .)
PARTS DESCRIPTION
| 1 | Steering gear |
| 2 | Tie Rod (See TIE ROD ASSEMBLY NOTE .) |
| 3 | Boot |
| 4 | Boot band (See BOOT BAND ASSEMBLY NOTE .) |
| 5 | Boot clamp |
| 6 | Locknut |
| 7 | Tie-rod end (See TIE-ROD END ASSEMBLY NOTE .) |
| 8 | Dust cover |
