360° View Monitor System Screen Display Verification Procedure
- Perform the preparation before servicing. (See PREPARATION BEFORE SERVICING .)
- Position the white lines at the positions shown in the figure.

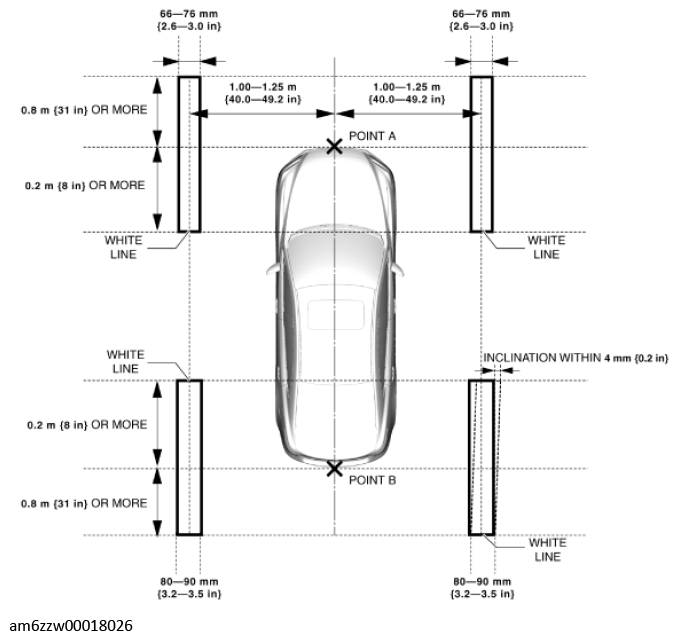

If all the cameras are verified

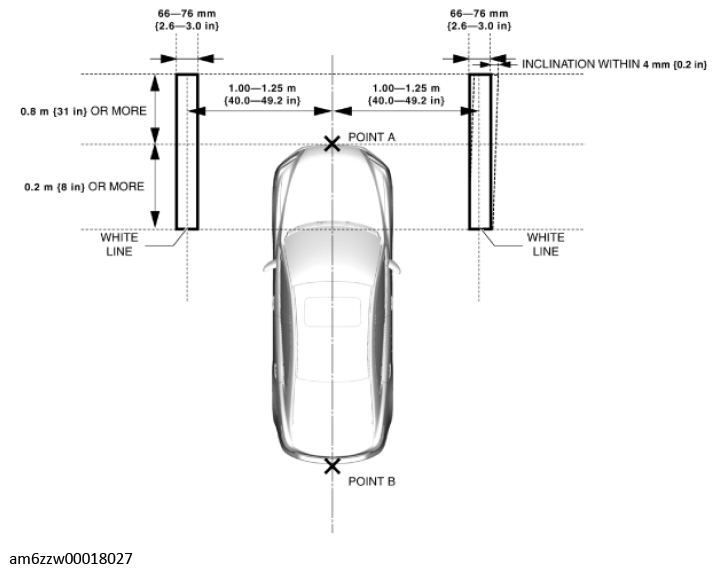

If the front camera is verified

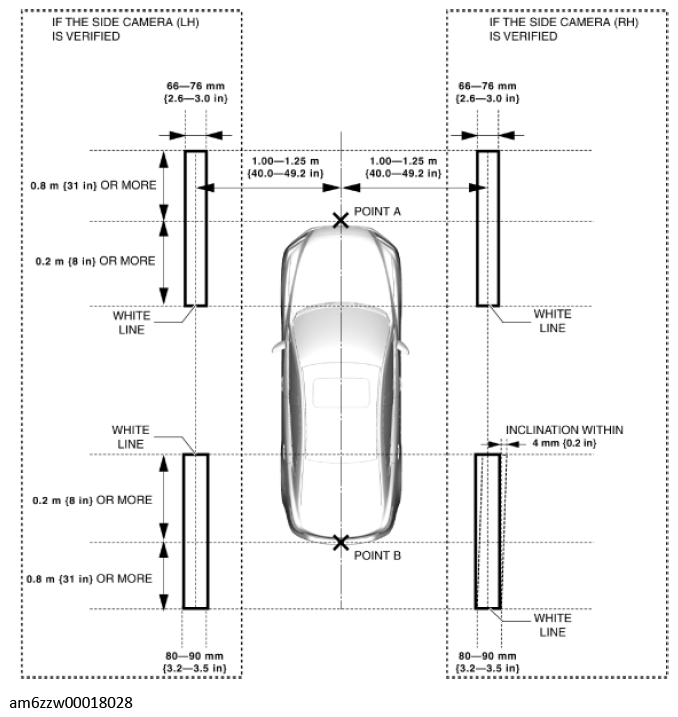

If the side camera is verified

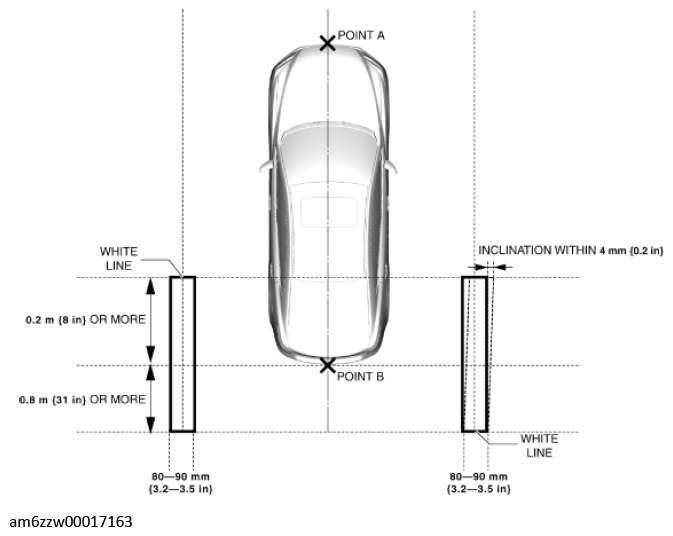

If the rear mount camera is verified
NOTE:- Use paper of 10 mm {0.39 in} thickness or less, or tape for the white lines.
- Verify that all the doors (front door, rear door) and the trunk lid are closed.
- Verify that the outer mirrors are unfolded.
- Switch the ignition ON (engine off or on).
- Display the screen of the 360° view monitor system in the center display by pressing the 360° view monitor switch.NOTE:
- If the projected vehicle path indication (yellow line) obscures the white lines, uncheck the check mark in the guide line display setting to turn the projected vehicle path indication off.

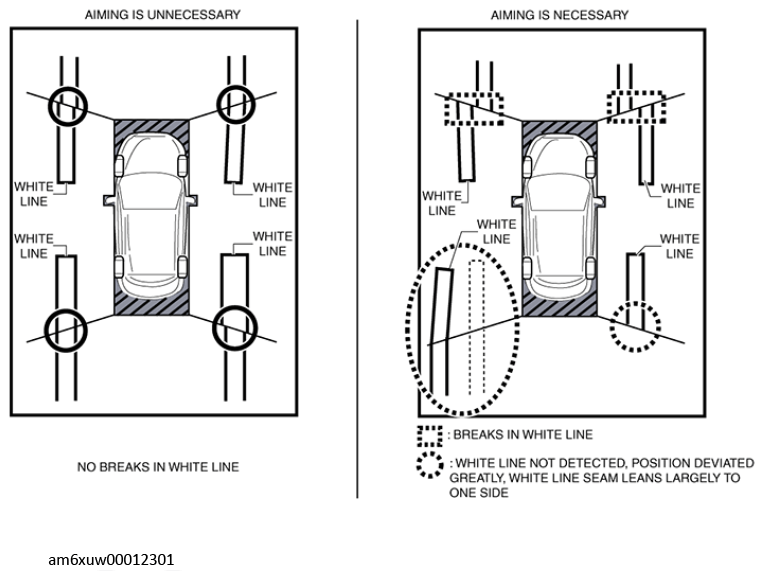

- Verify that there are no breaks in the seams of the white lines in the display screen of the center display.
- If there are no breaks in the seams of the white lines, the 360° view monitor system aiming is completed.
- If there are breaks in the seams of the white lines, perform the aiming procedure. (See SELECTION OF PROCEDURE FOR 360° VIEW MONITOR SYSTEM AIMING .)
- If the white lines cannot be found, a position has deviated, or the seams of the white lines lean largely to one side, return to Step 2 and verify the white line position.
