SUNVISOR Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)

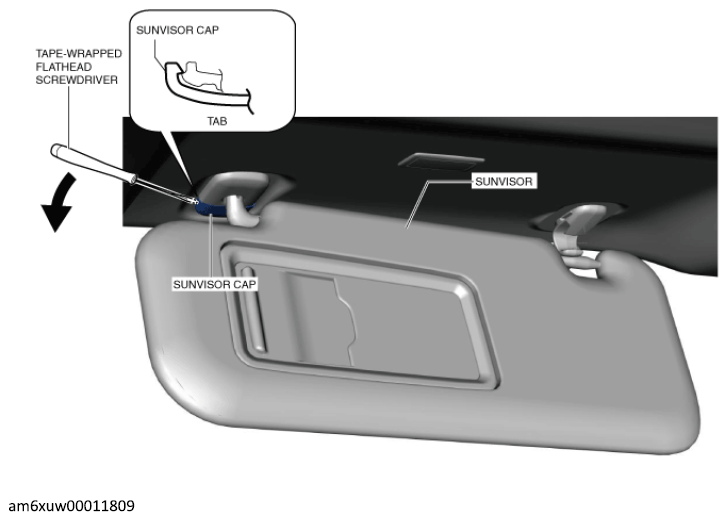

  2. Move the tape-wrapped flathead screwdriver in the direction of the arrow shown in the figure, detach the tab, and remove the sunvisor cap.
    G12236516Courtesy of MAZDA MOTORS CORP.

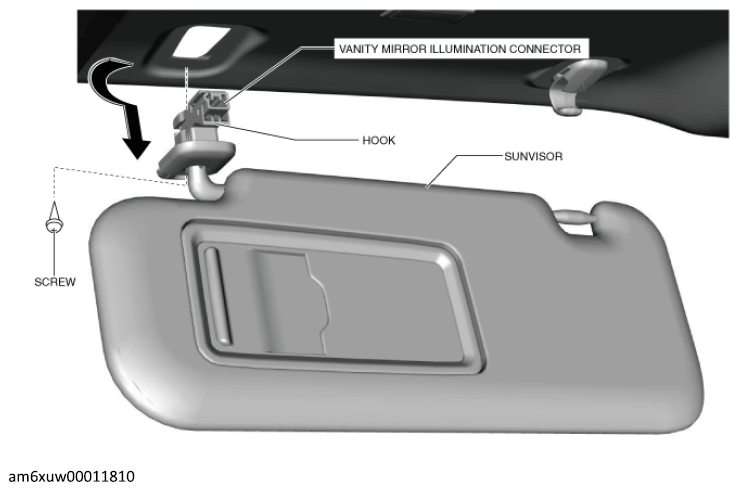

  3. Remove the screw.
    G12236517Courtesy of MAZDA MOTORS CORP.
  4. Move the sunvisor in the direction of the arrow shown in the figure and detach the hook.
  5. Disconnect the vanity mirror illumination connector.

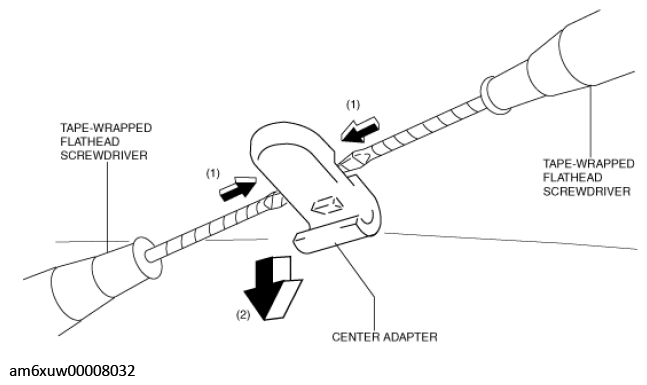

  6. Press the center adapter tabs in the direction of the arrow (1) shown in the figure using two tape-wrapped flathead screwdrivers.
    G11544616Courtesy of MAZDA MOTORS CORP.
  7. Remove the center adapter in the direction of the arrow (2) shown in the figure.
  8. Install in the reverse order of removal.
