Front Lower Arm Bushing Installation Note

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

Apply soapy water to the front lower arm bushing.
Install the front lower arm bushing using the SSTs and the press.
CAUTION:
- Finish positioning the bushing before the soapy water dries.

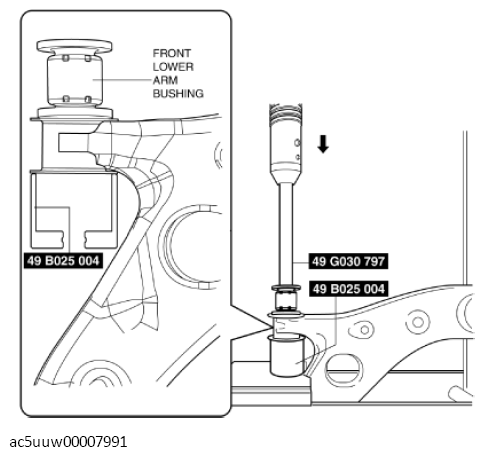

Fig 1: Front Lower Arm Bushing Using SST And Press
Courtesy of MAZDA MOTORS CORP.
NOTE:
- If soapy water gets in the inner pipe of the front lower arm bushing, always wipe it off using a cloth.
Using a vernier caliper and steel plate, verify that the front lower arm bushing is installed to the position shown in the figure below.

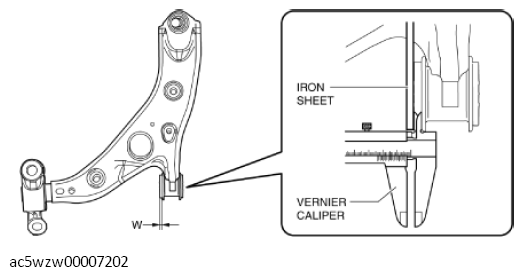

Fig 2: Checking Front Lower Arm Bushing Position
Courtesy of MAZDA MOTORS CORP.

W: 5.6±0.8 mm {0.22±0.03 in}
