Weatherstrip Installation Note

WARNING: This page is about a different car, the 2018 Mazda 6. However, it is still accessible from the selected car via links, so may be relevant.

When installing the weatherstrip to the glass panel, align the joint line to the position shown in the figure below.

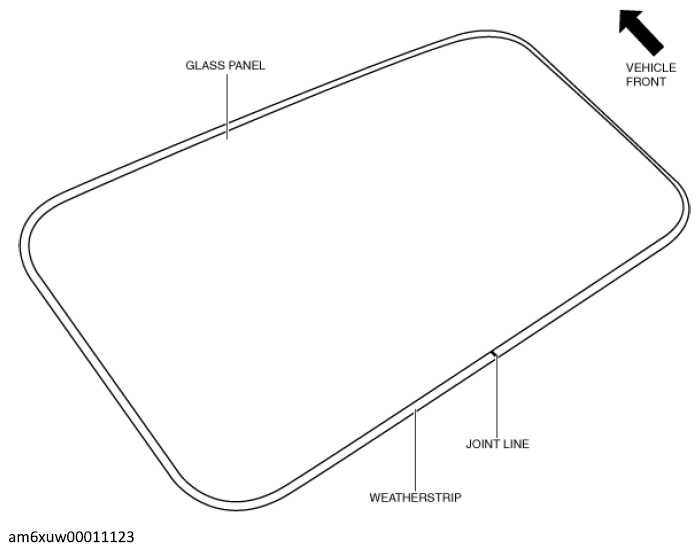

Fig 1: Aligning Joint Line

Courtesy of MAZDA MOTORS CORP.
