Ignition Coil/Ion Sensor Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
  2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  3. Remove in the order indicated in the table.
  4. Install in the reverse order of removal

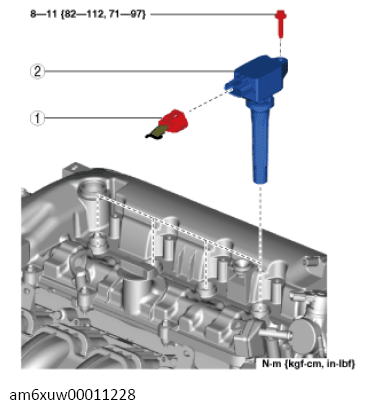

    Fig 1: Ignition Coil/Ion Sensor Components With Torque Specification
    G13714167Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Connector
    2 Ignition coil/ion sensor
