Inspection Using an Oscilloscope
Courtesy of MAZDA MOTORS CORP.

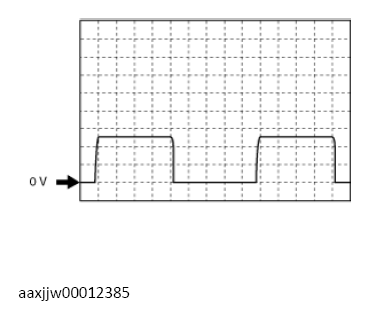

Power window main switch: 2D (+), 2F (+) ↔ ground (-)
Power window motor: B (+), C (+) ↔ ground (-)
Oscilloscope setting: 2 V/DIV (Y), 1 ms/DIV (X), DC range
Courtesy of MAZDA MOTORS CORP.
