Oil Cooler Water Pipe Component Installation Note

Install the oil cooler water pipe component in the order shown in the figure.

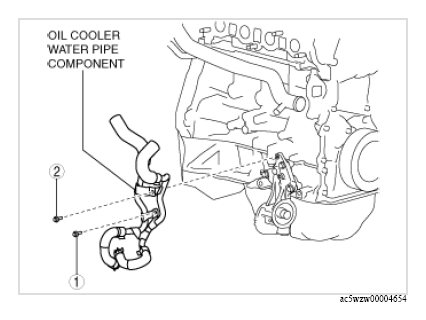

Fig 1: Oil Cooler Water Pipe Component Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.

Tightening torque

8-11 N.m {82-112 kgf.cm, 71-97 in.lbf}
