Plug Hole Plate Removal/Installation: Removal

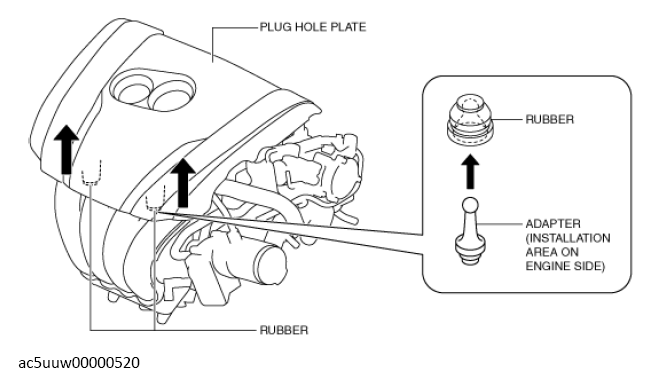

Pull up the front part of the plug hole plate at the same time and remove the rubber from the adapter on the engine side.

Courtesy of MAZDA MOTORS CORP.

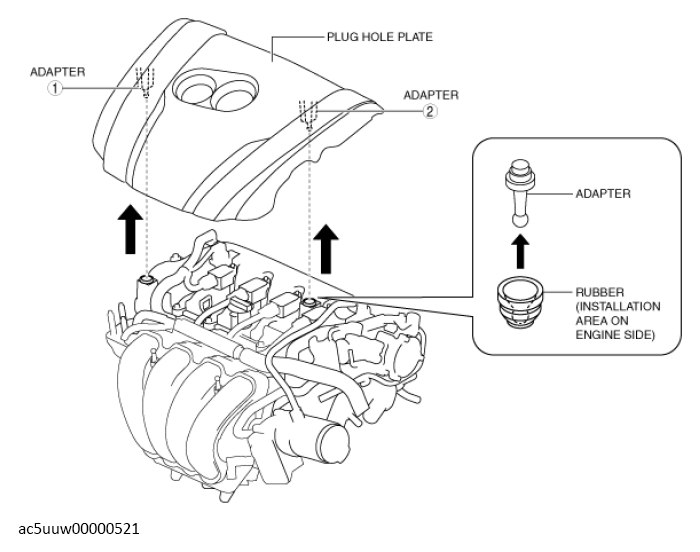

Pull up the plug hole plate in the order shown in the figure and remove the adapter from the rubber on the engine side.

Courtesy of MAZDA MOTORS CORP.
