Airflow Mode Actuator Removal/Installation (Auto A/C)
>>
Airflow Mode Main Link Installation Note
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Airflow Mode Main Link Installation Note
WARNING:
This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
Align the airflow mode main link installation hole with the shape of the airflow mode actuator shaft.

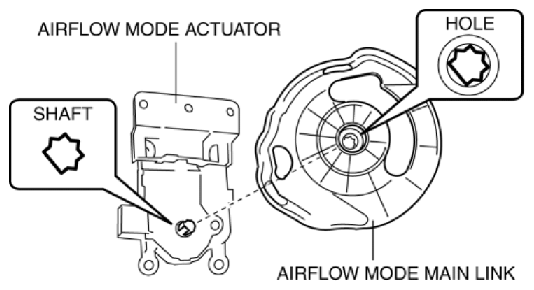

Fig 1: Aligning Airflow Mode Main Link Installation Hole With Airflow Mode Actuator Shaft
Courtesy of MAZDA MOTORS CORP.
