Solar Radiation Sensor Inspection (Auto A/C)

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
Remove the solar radiation sensor. (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION (AUTO A/C) .)
Shine a fluorescent light or expose the solar radiation sensor to natural sunlight.
Connect the positive (+) lead to terminals B and negative (-) lead to terminal A of the solar radiation sensor, and verify that the voltage value is output.

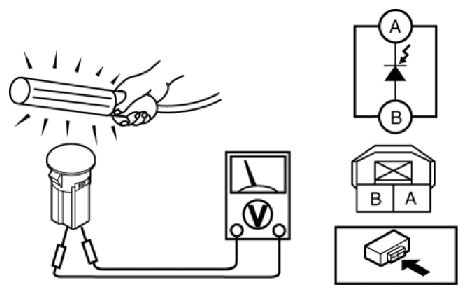

Fig 1: Inspecting Solar Radiation Sensor (Full-Auto Air Conditioner)

Courtesy of MAZDA MOTORS CORP.

If the voltage is 0 V, replace the solar radiation sensor. (See SOLAR RADIATION SENSOR REMOVAL/INSTALLATION (AUTO A/C) .)
