Accelerator Pedal Removal/Installation
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)

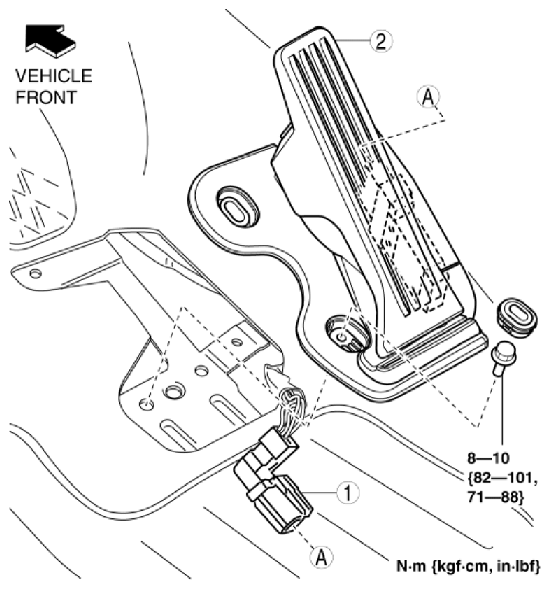

- Remove in the order indicated in the graphic.
Courtesy of MAZDA MOTORS CORP.
COMPONENT DESCRIPTION1 APP sensor connector 2 Accelerator pedal - Install in the reverse order of removal.
