Air Cleaner Cover Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Install the air cleaner cover as shown in the graphic.

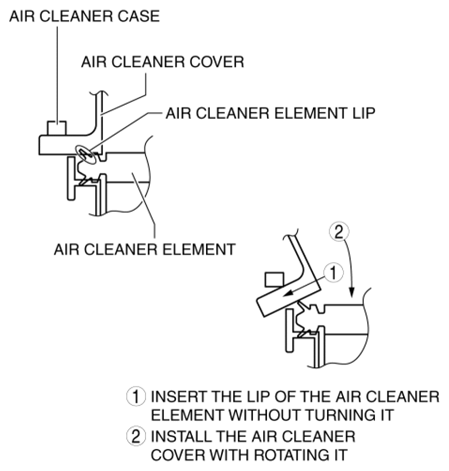

Fig 1: Installing Air Cleaner Cover
Courtesy of MAZDA MOTORS CORP.
Secure the air cleaner cover and the air cleaner case with the clip.

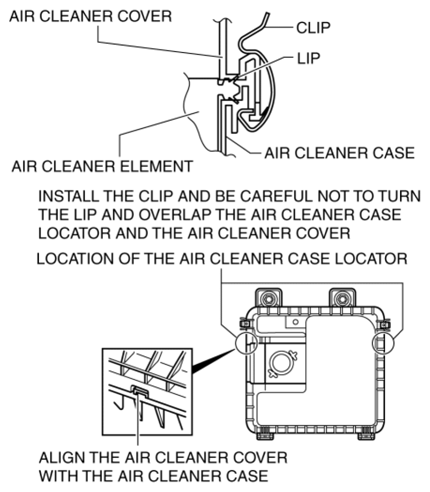

Fig 2: Securing Air Cleaner Cover And Air Cleaner Case

Courtesy of MAZDA MOTORS CORP.
