Air Hose Installation Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Install the air hose as shown in the graphic.

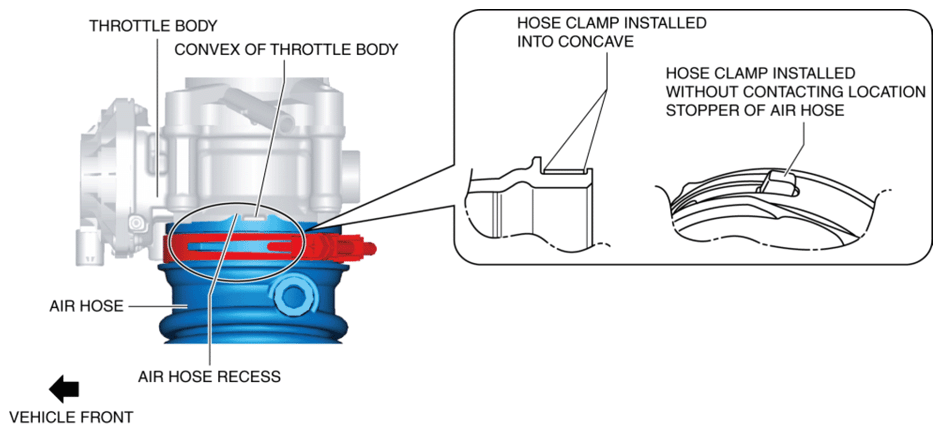

Fig 1: Installing Air Hose (Throttle Body Side) (1 Of 2)
Courtesy of MAZDA MOTORS CORP.

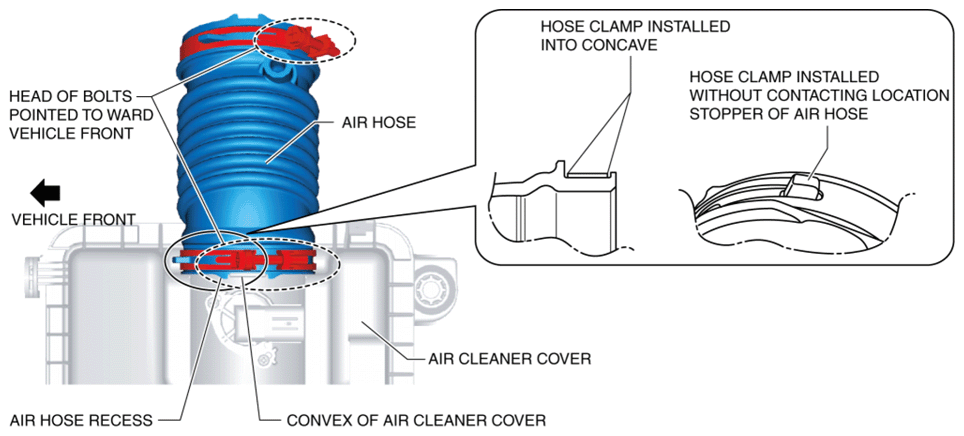

Fig 2: Installing Air Hose (Air Cleaner Side) (2 Of 2)
Courtesy of MAZDA MOTORS CORP.
