Fresh-Air Duct Removal Note

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. While moving the tabs in the direction shown in the graphic, rotate the fresh air duct.

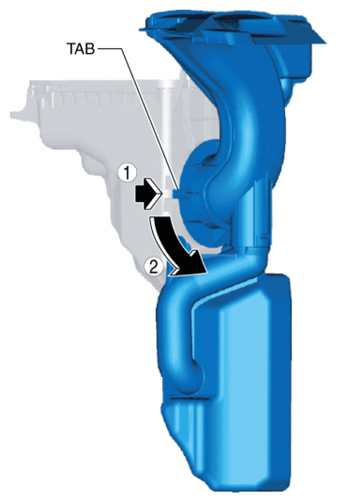

    Fig 1: Rotating Fresh Air Duct
    G10968792Courtesy of MAZDA MOTORS CORP.
  2. Remove the fresh-air duct.
