Front Console Box Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (Refer to NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Center console tray (Refer to CENTER CONSOLE TRAY REMOVAL/INSTALLATION .)
    2. Selector lever knob (Refer to AUTOMATIC TRANSAXLE SHIFT MECHANISM REMOVAL/INSTALLATION .)
    3. Shift bezel (Refer to SHIFT BEZEL REMOVAL/INSTALLATION .)
    4. Upper panel (Refer to UPPER PANEL REMOVAL/INSTALLATION .)
    5. Shift panel (Refer to SHIFT PANEL REMOVAL/INSTALLATION .)
    6. Console side panel (Refer to CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
  3. Insert a remover tool in the position indicated by the arrow (1) in the figure and detach clip.

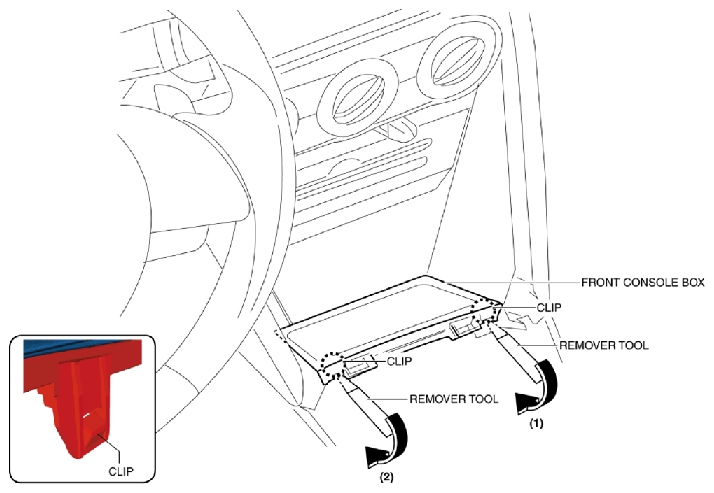

    Fig 1: Inserting Remover Tool In Front Console Box
    G10914749Courtesy of ABLE BODY CORP.
  4. Insert a remover tool in the position indicated by the arrow (2) in the figure and detach clip.
  5. Remove the front console box in the direction of the arrow shown in the figure while detaching guide.

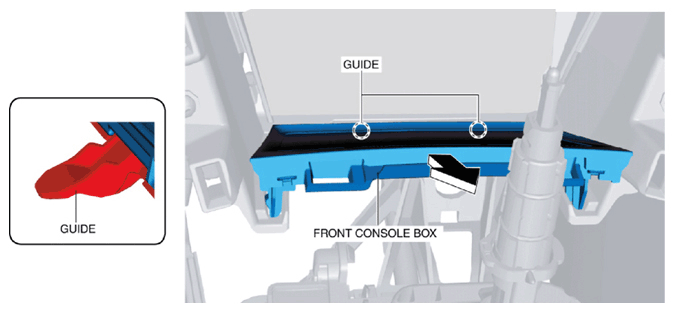

    Fig 2: Removing Front Console Box
    G10914750Courtesy of ABLE BODY CORP.
  6. Install in the reverse order of removal.
