Liftgate Recess Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. While pressing the liftgate recess in the direction of arrows (1) shown in the figure, move the liftgate recess in the direction of arrow (2), and detach the liftgate recess tab from the liftgate.

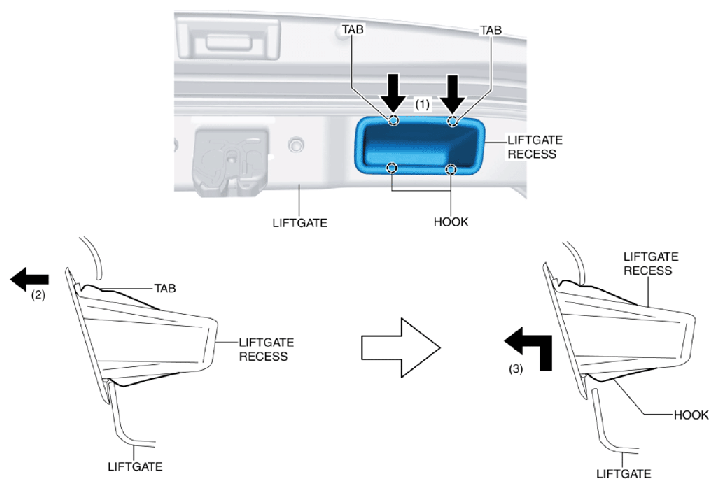

    Fig 1: Detaching Liftgate Recess Tab From Liftgate
    G10914832Courtesy of ABLE BODY CORP.
  2. Remove the trunk lid recess in the direction of the arrow (3) shown in the figure avoiding hooks.
  3. Install in the reverse order of removal.
