With Center Display

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

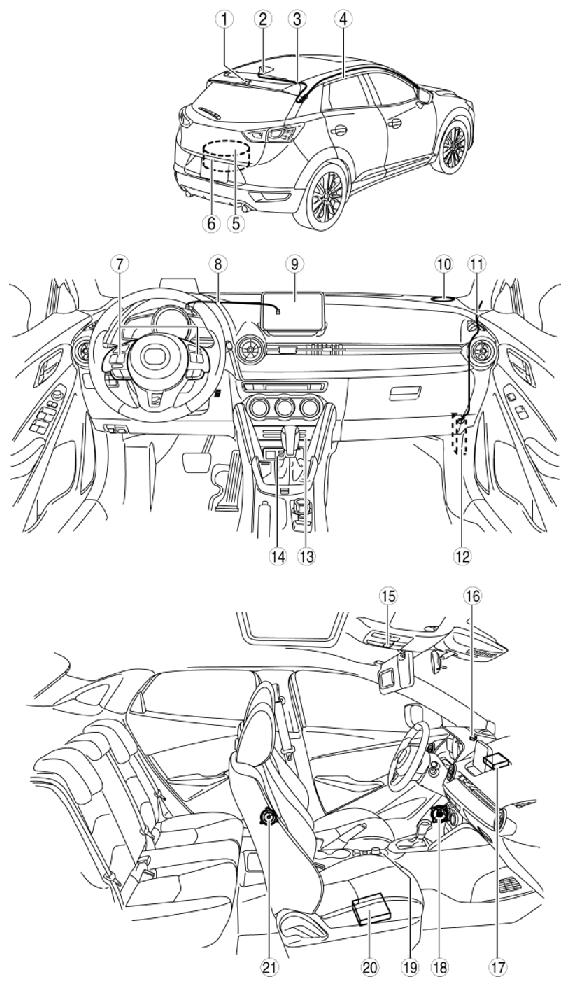

Fig 1: Entertainment (With Center Display) Components Location

Courtesy of MAZDA

COMPONENT DESCRIPTION

1	Condenser (See CONDENSER REMOVAL/INSTALLATION .)
2	Center roof antenna (See CENTER ROOF ANTENNA REMOVAL/INSTALLATION .) (See CENTER ROOF ANTENNA INSPECTION .)
3	Antenna feeder No. 3 (See ANTENNA FEEDER No. 3 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER No. 3 INSPECTION .)
4	Antenna feeder No. 2 (See ANTENNA FEEDER No. 2 REMOVAL .) (See ANTENNA FEEDER No. 2 INSTALLATION .) (See ANTENNA FEEDER No. 2 INSPECTION .)
5	Bass-box (with Bose®) (See BASS-BOX REMOVAL/INSTALLATION .) (See BASS-BOX INSPECTION .)
6	Rear mount camera (with park assist system) (See REAR MOUNT CAMERA REMOVAL/INSTALLATION .)
7	Steering switch (See STEERING SWITCH REMOVAL/INSTALLATION .) (See STEERING SWITCH INSPECTION .)
8	GPS antenna feeder (See GPS ANTENNA FEEDER REMOVAL/INSTALLATION .) (See GPS ANTENNA FEEDER INSPECTION .)
9	Center display (See CENTER DISPLAY REMOVAL/INSTALLATION .)
10	Tweeter (See TWEETER REMOVAL/INSTALLATION .) (See TWEETER INSPECTION .)
11	Antenna feeder No. 1 (See ANTENNA FEEDER No. 1 REMOVAL/INSTALLATION .) (See ANTENNA FEEDER No. 1 INSPECTION .)
12	Tuner and amp unit (TAU) (See TUNER AND AMP UNIT (TAU) REMOVAL/INSTALLATION .)
13	CD player (with CD player) (See CD PLAYER REMOVAL .) (See CD PLAYER INSTALLATION .)
14	Auxiliary jack/USB port/SD card slot hub (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB REMOVAL/INSTALLATION .) (See AUXILIARY JACK/USB PORT/SD CARD SLOT HUB INSPECTION .)
15	Microphone (See MICROPHONE REMOVAL/INSTALLATION .)
16	Global positioning system (GPS) antenna (See GLOBAL POSITIONING SYSTEM (GPS) ANTENNA REMOVAL/INSTALLATION .)
17	Connectivity master unit (CMU) (See CONNECTIVITY MASTER UNIT (CMU) REMOVAL/INSTALLATION .) (See CONNECTIVITY MASTER UNIT (CMU) DISASSEMBLY/ASSEMBLY .) (See CENTER DISPLAY PERSONALIZATION FEATURES SETTING PROCEDURE .) (See Bluetooth® PAIRING PROCEDURE .) (See MAINTENANCE MONITOR OPERATION PROCEDURE .)
18	Front door speaker (See FRONT DOOR SPEAKER REMOVAL/INSTALLATION .) (See FRONT DOOR SPEAKER INSPECTION .)
19	Commander switch (See COMMANDER SWITCH REMOVAL/INSTALLATION .)
20	Audio amplifier (with Bose®) (See AUDIO AMPLIFIER REMOVAL/INSTALLATION .)
21	Rear door speaker (See REAR DOOR SPEAKER REMOVAL/INSTALLATION .) (See REAR DOOR SPEAKER INSPECTION .)
