Blower Fan Controller Removal/Installation

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
  2. Remove the following parts:
    1. Glove compartment (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
  3. Disconnect the blower fan controller connector.

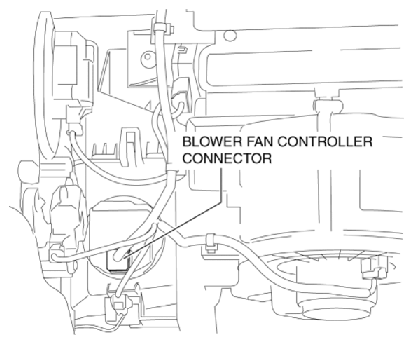

    Fig 1: Identifying Blower Fan Controller Connector
    G10910205Courtesy of MAZDA MOTORS CORP.
  4. Rotate the blower fan controller (2) while pressing the tab (1).

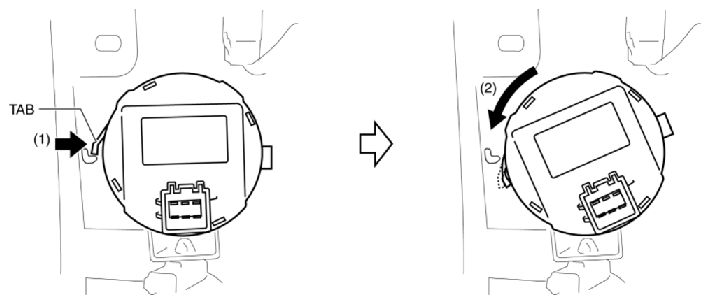

    Fig 2: Rotating Blower Fan Controller
    G10910206Courtesy of MAZDA MOTORS CORP.
  5. Remove the blower fan controller.

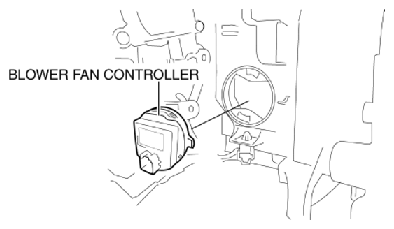

    Fig 3: Removing Blower Fan Controller
    G10910207Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
