DTC B108F-16: Door Lock Switch Circuit Malfunction: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Description	Door lock switch circuit malfunction
Detection condition	With the door lock switch off, the BCM detects a short to ground in the door lock switch circuit.
Fail-safe	Not applicable

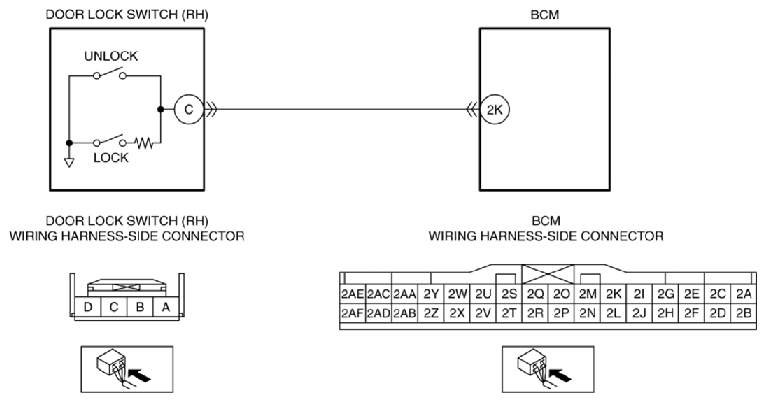

Possible cause	Door lock switch (RH) connector or terminal malfunction Door lock switch (RH) malfunction BCM connector or terminal malfunction Short to ground in wiring harness between door lock switch (RH) terminal C and BCM terminal 2K BCM malfunction
