Steering Gear And Linkage Assembly: Notes

WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.

Assemble in the order shown in the figure.

Install the steering gear and linkage. (See STEERING GEAR AND LINKAGE REMOVAL/INSTALLATION .)

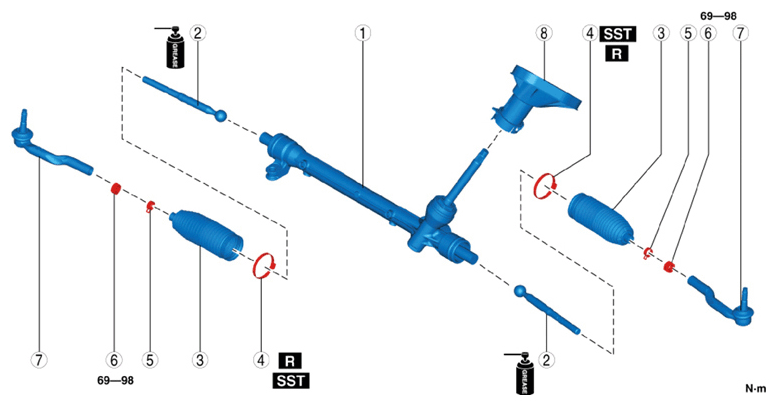

Fig 1: Steering Gear And Linkage Assembly Components

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Steering gear
2	Tie Rod (See Tie Rod Assembly Note .)
3	Boot
4	Boot band (See Boot Band Assembly Note .)
5	Boot clamp
6	Locknut
7	Tie-rod end (See Tie-rod End Assembly Note .)
8	Dust cover
