Charging Preparation
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
- Close all the valves of the manifold gauge.
- Close the valve of the refrigerant tank.

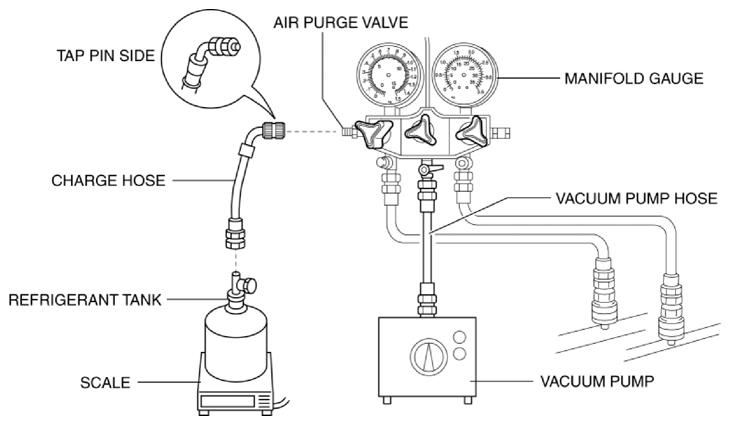

- Install the manifold gauge set. (See Refrigerant System General Procedures .)
- Connect the tap pin side of the charging hose to the air purge valve of the manifold gauge.
- Connect the vacuum pump hose to the center joint of the manifold gauge.
- Connect the vacuum pump hose to the vacuum pump.
- Connect the charging hose to the refrigerant tank.
- Place the refrigerant tank on the scale.
Regular Amount Of Refrigerant (approx. quantity)
- 395-445 g {14.0-15.6 oz}
