Cylinder Head Cover Installation Note
WARNING: This page is about a different car, the 2016 Mazda CX-3. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- To assure the sealing performance of the cylinder head cover, be careful of the following:
- Verify that the cylinder head cover gasket is inserted into the cylinder head cover groove and install the cylinder head cover.
- Completely clean and remove oil, dirt, sealant or other foreign matter from the seal surface.
- To prevent silicone sealant from hardening, adhere the cylinder head cover and the cylinder head firmly within 10 min. after applying silicone sealant. After adhering them, tighten the installation bolts immediately.
- Insert a new cylinder head cover gasket into the cylinder head cover groove.

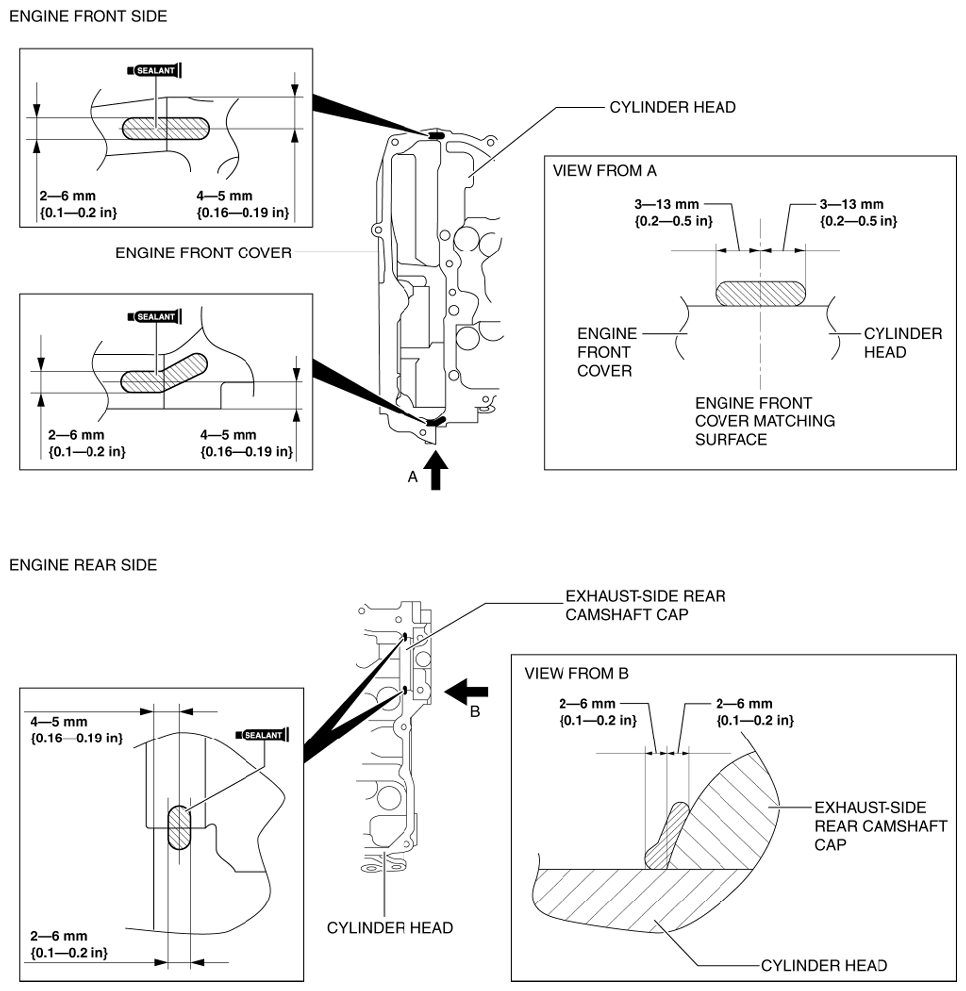

- Apply silicone sealant (TB1217D or equivalent) to the areas shown in the figure.

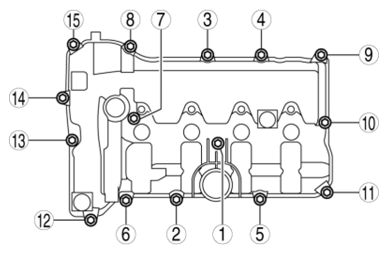

- Tighten the cylinder cover bolts in the order shown in the figure.
Tightening torque
- 4.5-7.0 N.m {46-71 kgf.cm, 40-61 in.lbf}
- Install in the reverse order of removal.
