Magnetic Clutch Adjustment: Notes
WARNING:
- If A/C compressor operation is performed, do not start the engine. Otherwise, the drive belt could get caught and cause an accident.
- Remove the front under cover No. 2. (See FRONT UNDER COVER NO. 2 REMOVAL/INSTALLATION .)

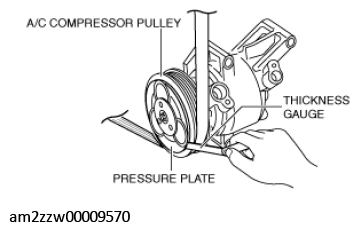

- Measure the clearance around the entire circumference between the pressure plate and A/C compressor pulley using a thickness gauge.
- Verify that the clearance is within the specification.
- If the clearance is not within the specification, adjust the clearance by changing the type or number of the shim kit. (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY .)
