Refrigerant System General Procedures

  1. Fully close the valves of the manifold gauge.
  2. Connect the charging hoses to the high- and low-pressure side joints of the manifold gauge.

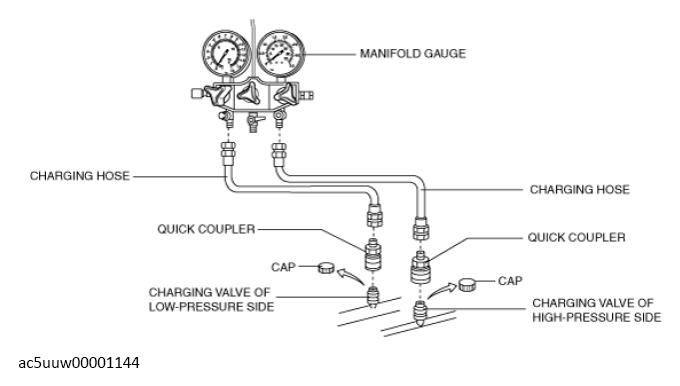

    G13150913Courtesy of MAZDA MOTORS CORP.
  3. Connect the quick couplers to the ends of the charging hoses.
  4. Connect the quick couplers to the charging valves.
