Connector Disconnect Note

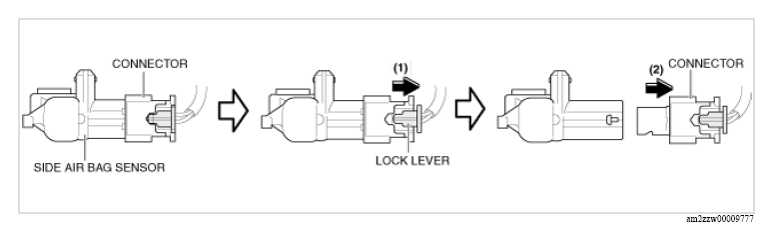

  1. Pull out the connector lock lever in the direction of arrow (1) shown in the figure.
    G13151530Courtesy of MAZDA MOTORS CORP.
  2. Move the connector in the direction of arrow (2) shown in the figure to disconnect it.
